deep learning Andrew學習筆記

標簽：學習

Freezing one weight cause the same result with unfreezing（Deep learning書的一個練習）

在神經網絡訓啦中，凍結某權重，總的誤差依然會降為0的現象。

# 用燈的組合與能否通信數據來做
import numpy as np
import matplotlib.pyplot as plt
streetlights = np.array([
    [1,0,1],
    [0,1,1],
    [0,0,1],
    [1,1,1],
    [0,1,1],
    [1,0,1]
])
walk_vs_stop = np.array([0,1,0,1,1,0])

#定義相關函數
alpha = 0.1
def predict(X,W):
    return np.dot(X,W)

#訓練
weight = np.array([0.5,0.48,-0.7]) #為了好看，weight設置個固定值
error = []
w = [[0.5,0.48,-0.7]]
for i in range(6):
    pre = predict(streetlights[i],weight)
    err = (pre - walk_vs_stop[i])**2
    delta = pre - walk_vs_stop[i]
    weight_delta = streetlights[i] * delta * alpha
    weight = weight - weight_delta
    if i != 5:
        w.append(weight)
    error.append(np.array(err))
print(error)
print(w)
fig, ax = plt.subplots()
ax.scatter(range(6),error)
plt.xlabel('run_times')
plt.ylabel('error')
plt.show()

[array(0.04), array(1.44), array(0.3136), array(0.147456), array(0.68425984), array(0.03080727)]
[[0.5, 0.48, -0.7], array([ 0.52,  0.48, -0.68]), array([ 0.52,  0.6 , -0.56]), array([ 0.52 ,  0.6  , -0.504]), array([ 0.5584,  0.6384, -0.4656]), array([ 0.5584 ,  0.72112, -0.38288])]

在這里插入圖片描述

#同樣的方法訓練，只是每次不變最后一個
weight = np.array([0.5,0.48,-0.7]) #為了好看，weight設置個固定值
error = []
w = [[0.5,0.48,-0.7]]
for i in range(6):
    pre = predict(streetlights[i],weight)
    err = (pre - walk_vs_stop[i])**2
    delta = pre - walk_vs_stop[i]
    weight_delta = streetlights[i] * delta * alpha
    weight_delta[2] = 0 #新加的語句
    weight = weight - weight_delta
    if i != 5:
        w.append(weight)
    error.append(np.array(err))
print(error)
print(w)
fig, ax = plt.subplots()
ax.scatter(range(6),error)
plt.xlabel('run_times')
plt.ylabel('error')
plt.show()

[array(0.04), array(1.4884), array(0.49), array(0.334084), array(1.08201604), array(0.01493284)]
[[0.5, 0.48, -0.7], array([ 0.52,  0.48, -0.7 ]), array([ 0.52 ,  0.602, -0.7  ]), array([ 0.52 ,  0.602, -0.7  ]), array([ 0.5778,  0.6598, -0.7   ]), array([ 0.5778 ,  0.76382, -0.7    ])]

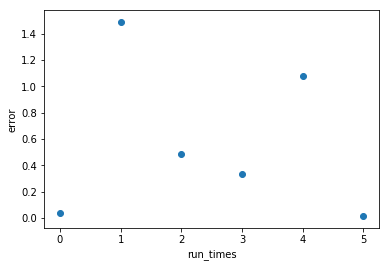

在這里插入圖片描述

看到這兩次輸出的weight結果差別不大，說明第三個weight確實不怎么影響結果，換個weight試試，還是error還是降低到了0……，控制兩個呢

#同樣的方法訓練，只是每次不變最后一個
weight = np.array([0.5,0.48,-0.7]) #為了好看，weight設置個固定值
error = []
w = [[0.5,0.48,-0.7]]
for i in range(6):
    pre = predict(streetlights[i],weight)
    err = (pre - walk_vs_stop[i])**2
    delta = pre - walk_vs_stop[i]
    weight_delta = streetlights[i] * delta * alpha
    weight_delta[1] = 0 #新加的語句
    weight = weight - weight_delta
    if i != 5:
        w.append(weight)
    error.append(np.array(err))
print(error)
print(w)
fig, ax = plt.subplots()
ax.scatter(range(6),error)
plt.xlabel('run_times')
plt.ylabel('error')
plt.show()

[array(0.04), array(1.44), array(0.3136), array(0.254016), array(0.94789696), array(0.04586451)]
[[0.5, 0.48, -0.7], array([ 0.52,  0.48, -0.68]), array([ 0.52,  0.48, -0.56]), array([ 0.52 ,  0.48 , -0.504]), array([ 0.5704,  0.48  , -0.4536]), array([ 0.5704 ,  0.48   , -0.35624])]

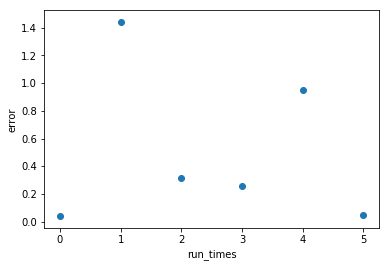

在這里插入圖片描述

控制兩個，也一樣的

#同樣的方法訓練，只是每次不變最后一個
weight = np.array([0.5,0.48,-0.7]) #為了好看，weight設置個固定值
error = []
w = [[0.5,0.48,-0.7]]
for i in range(6):
    pre = predict(streetlights[i],weight)
    err = (pre - walk_vs_stop[i])**2
    delta = pre - walk_vs_stop[i]
    weight_delta = streetlights[i] * delta * alpha
    weight_delta[0] = 0 #新加的語句
    weight_delta[1] = 0 #新加的語句
    weight = weight - weight_delta
    if i != 5:
        w.append(weight)
    error.append(np.array(err))
print(error)
print(w)
fig, ax = plt.subplots()
ax.scatter(range(6),error)
plt.xlabel('run_times')
plt.ylabel('error')
plt.show()

[array(0.04), array(1.44), array(0.3136), array(0.274576), array(0.94400656), array(0.02118771)]
[[0.5, 0.48, -0.7], array([ 0.5 ,  0.48, -0.68]), array([ 0.5 ,  0.48, -0.56]), array([ 0.5  ,  0.48 , -0.504]), array([ 0.5   ,  0.48  , -0.4516]), array([ 0.5    ,  0.48   , -0.35444])]

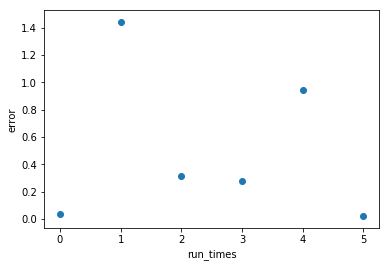

在這里插入圖片描述
