SpringCloud服務調用

這次學習的服務調用主要是ribbon和openFeign的應用

一、ribbon的負載均衡和RestTemplate

1.負載均衡

在調用eurake的時候,其pom文件默認幫我們調用了ribbon,所以能實現默認的輪詢方式的負載均衡功能.

<dependency>
  <groupId>org.springframework.cloud</groupId>
  <artifactId>spring-cloud-netflix-ribbon</artifactId>
  <version>2.2.1.RELEASE</version>
  <scope>compile</scope>
  <optional>true</optional>
</dependency>

查詢ribbon源碼,其調用規則是IRule

package com.netflix.loadbalancer;

public interface IRule {
    Server choose(Object var1);

    void setLoadBalancer(ILoadBalancer var1);

    ILoadBalancer getLoadBalancer();
}

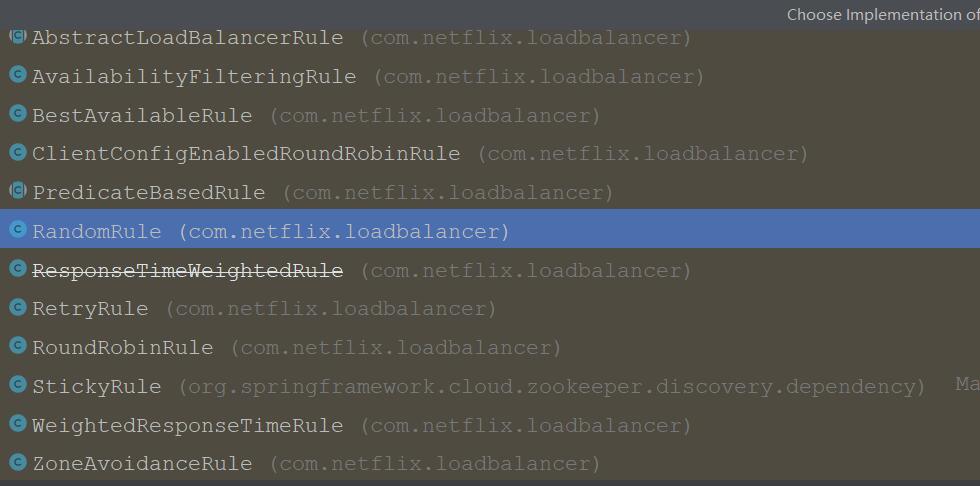

查看其源碼可以發現其實現類

• com.netflix.loadbalancer.RoundRobinRule 實現輪詢選擇

• com.netflix.loadbalancer.RandomRule 實現隨機選擇

• com.netflix.loadbalancer.RetryRule 先按照RoundRobinRule的策略獲取服務，如果獲取服務失敗則在指定時間內會進行重試

• com.netflix.loadbalancer.WeightedResponseTimeRule 對RoundRobinRule的擴展，響應速度越快的實例選擇權重越大，越容易被選擇

• com.netflix.loadbalancer.BestAvailableRule 會先過濾掉由于多次訪問故障而處于斷路器跳閘狀態的服務，然后選擇一個并發量最小的服務

• com.netflix.loadbalancer.AvailabilityFilteringRule 先過濾掉故障實例，再選擇并發較小的實例

• com.netflix.loadbalancer.ZoneAvoidanceRule 默認規則，復合判斷server所在區域的性能和server的可用性選擇服務器

默認調用的就是輪詢選擇

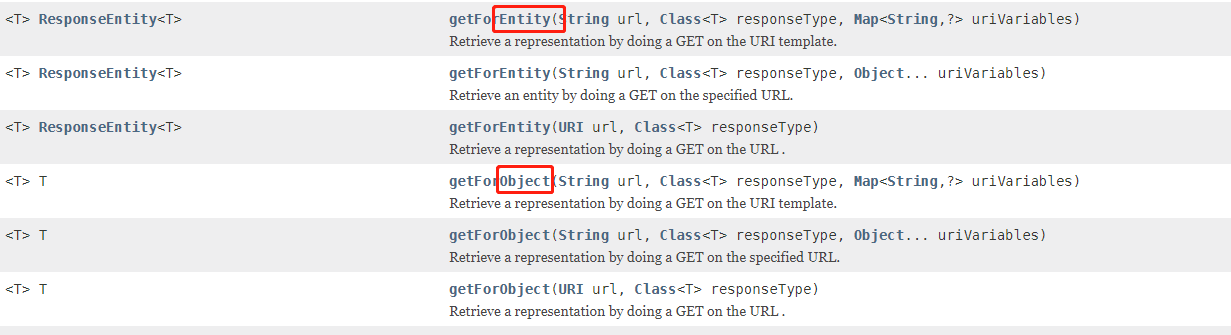

2.RestTemplate的方法區別

模板獲取對象方法有以下幾種

getForObject方法/getForEntity方法

postForObject/postForEntity方法

其實區別不大,就是object的返回值是json串,entitity返回的是一個帶有很多頭信息等等信息的對象

3.rule切換

1.新建子包

默認規則是輪詢,現在可以把它改成隨機,根據官網所述,不能將新的rule放入到@componetScan注解能夠掃描到的地方,所以先新建一個包.

2.新建一個Myrule類

@Component
public class MyRule {
    @Bean
    public IRule randomRule() {
        return new RandomRule();
    }
}

3.在主方法上聲明調用

//必須指定name和configuration
@RibbonClient(name = "CLOUD-PAYMENT-SERVICE",configuration = MyRule.class)

4.輪詢算法源碼探究

輪詢算法底層還是挺簡單的,就是用CAS和一個循環.

源碼分析如下:

public class RoundRobinRule extends AbstractLoadBalancerRule {
    //聲明一個AtomicInteger類
    private AtomicInteger nextServerCyclicCounter;
    private static final boolean AVAILABLE_ONLY_SERVERS = true;
    private static final boolean ALL_SERVERS = false;
    private static Logger log = LoggerFactory.getLogger(RoundRobinRule.class);
	//初始化AtomicInteger參數為0
    public RoundRobinRule() {
        this.nextServerCyclicCounter = new AtomicInteger(0);
    }
	//初始化ILoadBalancer
    public RoundRobinRule(ILoadBalancer lb) {
        this();
        this.setLoadBalancer(lb);
    }

    public Server choose(ILoadBalancer lb, Object key) {
        //如果為空,那就提示沒有ILoadBalancer
        if (lb == null) {
            log.warn("no load balancer");
            return null;

        } else {
            //如果ILoadBalancer非空,就開始計數
            Server server = null;
            int count = 0;
			//開啟一個循環
            while(true) {
                //默認是10次為上限,每次重啟都會重置count
                if (server == null && count++ < 10) {
                    //獲取所有可用的服務器
                    List<Server> reachableServers = lb.getReachableServers();
                    //獲取所有服務器
                    List<Server> allServers = lb.getAllServers();
                    //獲取所有可用的服務器數量
                    int upCount = reachableServers.size();
                    //獲取所有服務器數量
                    int serverCount = allServers.size();
                    if (upCount != 0 && serverCount != 0) {
                        //調用下面的incrementAndGetModulo函數來選擇幾號服務器
                        int nextServerIndex = this.incrementAndGetModulo(serverCount);
                        //調用對應編號服務器
                        server = (Server)allServers.get(nextServerIndex);
                        if (server == null) {
                            Thread.yield();
                        } else {
                            if (server.isAlive() && server.isReadyToServe()) {
                                //如果可以用就返回
                                return server;
                            }

                            server = null;
                        }
                        continue;
                    }

                    log.warn("No up servers available from load balancer: " + lb);
                    return null;
                }

                if (count >= 10) {
                    log.warn("No available alive servers after 10 tries from load balancer: " + lb);
                }

                return server;
            }
        }
    }
	//核心算法
    private int incrementAndGetModulo(int modulo) {
        //初始化參數,傳入modulo為總數
        int current;
        int next;
        //每次用一次就+1%總數
        do {
            current = this.nextServerCyclicCounter.get();
            next = (current + 1) % modulo;
        } while(!this.nextServerCyclicCounter.compareAndSet(current, next));
		//返回服務器編號
        return next;
    }

    public Server choose(Object key) {
        return this.choose(this.getLoadBalancer(), key);
    }

    public void initWithNiwsConfig(IClientConfig clientConfig) {
    }
}

二、openFeign的入門

源碼及說明文檔

Declarative REST Client: Feign creates a dynamic implementation of an interface decorated with JAX-RS or Spring MVC annotations

Feign是一個聲明式的web服務客戶端，讓編寫web服務客戶端變得非常容易，只需創建一個接口并在接口上添加注解即可

1.openFeign服務調用

1.修改pom

<!--openfeign里面引入了ribbon-->
<dependency>
    <groupId>org.springframework.cloud</groupId>
    <artifactId>spring-cloud-starter-openfeign</artifactId>
</dependency>
<!--eureka client-->
<dependency>
    <groupId>org.springframework.cloud</groupId>
    <artifactId>spring-cloud-starter-netflix-eureka-client</artifactId>
</dependency>

2.編寫appliciation.yml

server:
  port: 80
eureka:
  client:
    register-with-eureka: false
    service-url:
      defaultZone: http://localhost:7001/eureka/,http://localhost:7002/eureka/

3.編寫主方法

@SpringBootApplication
//開啟openfeign
@EnableFeignClients
public class FeignOrderMain80 {
    public static void main(String[] args) {
        SpringApplication.run(FeignOrderMain80.class,args);
    }
}

4.開啟feign注解的接口服務

@Component
@FeignClient(name = "CLOUD-PAYMENT-SERVICE")
public interface FeignOrderService {
    @GetMapping("/payment/get/{id}")
    public CommonResult<Payment> getPaymentById(@PathVariable("id") Long id) ;
}

5.控制層編寫

@RestController
@Slf4j
public class FeignPaymentController {
    @Resource
    FeignOrderService feignOrderService;
    @GetMapping("/consumer/payment/get/{id}")
    public CommonResult<Payment> getPaymentById(@PathVariable("id") Long id) {
        return feignOrderService.getPaymentById(id);
    }
}

2.openFeign的超時控制

默認情況下,如果業務不在一秒內完成就會報出timeout的錯誤

There was an unexpected error (type=Internal Server Error, status=500).

Read timed out executing GET http://CLOUD-PAYMENT-SERVICE/payment/timeout

feign.RetryableException: Read timed out executing GET http://CLOUD-PAYMENT-SERVICE/payment/timeout

由于整合了ribbon,可以直接在yaml文件中進行修改

ribbon:
  ReadTimeout: 5000
  ConnectTimeout: 5000

3.日志增強

1.新建配置類

@Configuration
public class MyFeignConfig {
    @Bean
    Logger.Level feignLoggerLevel(){
        return Logger.Level.FULL;
    }
}

2.改寫Yml文件

logging:
  level:
    #以什么級別監視哪個接口
    com.xiaoxiao.springcloud.service.FeignOrderService: debug
