一 參考

https://www.lanhusoft.com/article/704.html

二 Elasticsearch

1 下載地址

https://thans.cn/mirror/elasticsearch.html

2 下載版本

elasticsearch-5.6.10.zip

3 解壓后啟動命令

D:\Program\elasticsearch-5.6.10\bin>elasticsearch.bat

4 驗證

瀏覽器輸入： http://localhost:9200/

頁面輸出：

{
  "name" : "qLoRyfJ",
  "cluster_name" : "elasticsearch",
  "cluster_uuid" : "q2nIotalTLy29ip0_JgvEA",
  "version" : {
    "number" : "5.6.10",
    "build_hash" : "b727a60",
    "build_date" : "2018-06-06T15:48:34.860Z",
    "build_snapshot" : false,
    "lucene_version" : "6.6.1"
  },
  "tagline" : "You Know, for Search"
}

說明運行成功。

三 SkyWalking

1 下載地址

http://skywalking.apache.org/downloads/

2 下載版本

https://archive.apache.org/dist/skywalking/6.1.0/apache-skywalking-apm-6.1.0.zip

3 解壓apache-skywalking-apm-bin.zip

4 配置D:\Program\apache-skywalking-apm-bin\config\application.yml

core:
  default:
    # Mixed: Receive agent data, Level 1 aggregate, Level 2 aggregate
    # Receiver: Receive agent data, Level 1 aggregate
    # Aggregator: Level 2 aggregate
    role: ${SW_CORE_ROLE:Mixed} # Mixed/Receiver/Aggregator
    restHost: ${SW_CORE_REST_HOST:127.0.0.1}
    restPort: ${SW_CORE_REST_PORT:12800}
    restContextPath: ${SW_CORE_REST_CONTEXT_PATH:/}
    gRPCHost: ${SW_CORE_GRPC_HOST:127.0.0.1}
    gRPCPort: ${SW_CORE_GRPC_PORT:11800}
    downsampling:
    - Hour
    - Day
    - Month
    # Set a timeout on metric data. After the timeout has expired, the metric data will automatically be deleted.
    recordDataTTL: ${SW_CORE_RECORD_DATA_TTL:90} # Unit is minute
    minuteMetricsDataTTL: ${SW_CORE_MINUTE_METRIC_DATA_TTL:90} # Unit is minute
    hourMetricsDataTTL: ${SW_CORE_HOUR_METRIC_DATA_TTL:36} # Unit is hour
    dayMetricsDataTTL: ${SW_CORE_DAY_METRIC_DATA_TTL:45} # Unit is day
    monthMetricsDataTTL: ${SW_CORE_MONTH_METRIC_DATA_TTL:18} # Unit is month
storage:
  elasticsearch:
#    nameSpace: ${SW_NAMESPACE:""}
    clusterNodes: ${SW_STORAGE_ES_CLUSTER_NODES:localhost:9200}
#    user: ${SW_ES_USER:""}
#    password: ${SW_ES_PASSWORD:""}
    indexShardsNumber: ${SW_STORAGE_ES_INDEX_SHARDS_NUMBER:2}
    indexReplicasNumber: ${SW_STORAGE_ES_INDEX_REPLICAS_NUMBER:0}
#    # Batch process setting, refer to https://www.elastic.co/guide/en/elasticsearch/client/java-api/5.5/java-docs-bulk-processor.html
    bulkActions: ${SW_STORAGE_ES_BULK_ACTIONS:2000} # Execute the bulk every 2000 requests
    bulkSize: ${SW_STORAGE_ES_BULK_SIZE:20} # flush the bulk every 20mb
    flushInterval: ${SW_STORAGE_ES_FLUSH_INTERVAL:10} # flush the bulk every 10 seconds whatever the number of requests
    concurrentRequests: ${SW_STORAGE_ES_CONCURRENT_REQUESTS:2} # the number of concurrent requests
    metadataQueryMaxSize: ${SW_STORAGE_ES_QUERY_MAX_SIZE:5000}
    segmentQueryMaxSize: ${SW_STORAGE_ES_QUERY_SEGMENT_SIZE:200}
#  h2:
#    driver: ${SW_STORAGE_H2_DRIVER:org.h2.jdbcx.JdbcDataSource}
#    url: ${SW_STORAGE_H2_URL:jdbc:h2:mem:skywalking-oap-db}
#    user: ${SW_STORAGE_H2_USER:sa}
#    metadataQueryMaxSize: ${SW_STORAGE_H2_QUERY_MAX_SIZE:5000}
#  mysql:
#    metadataQueryMaxSize: ${SW_STORAGE_H2_QUERY_MAX_SIZE:5000}

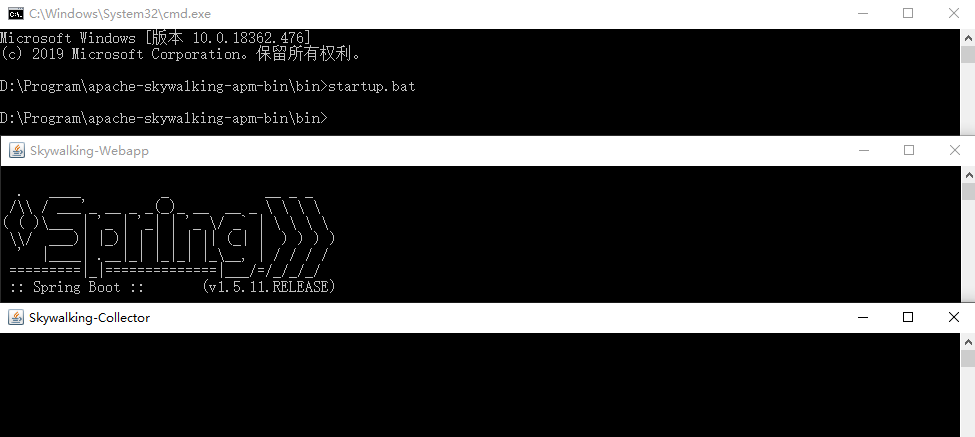

5 啟動命令

D:\Program\apache-skywalking-apm-bin\bin>startup.bat
