Eureka Client源碼詳細分析
標簽： Spring Cloud Eureka Client源碼 Eureka Client
一，Eureka Client概述

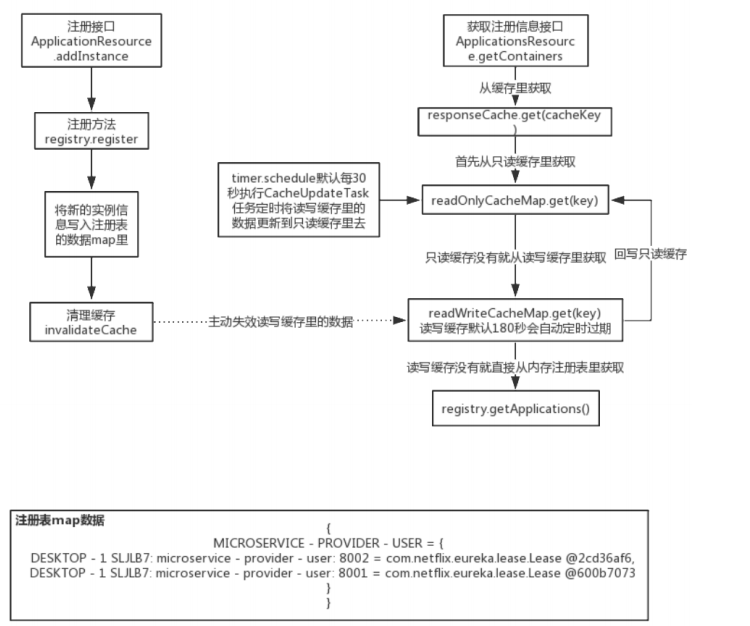

1，Eureka Client工作流程圖
2，@EnableDiscoveryClient注解
@SpringBootApplication
@EnableDiscoveryClient
public class EurekaClientApplication {
public static void main(String[] args) {
SpringApplication.run(EurekaClientApplication.class, args);
}
}

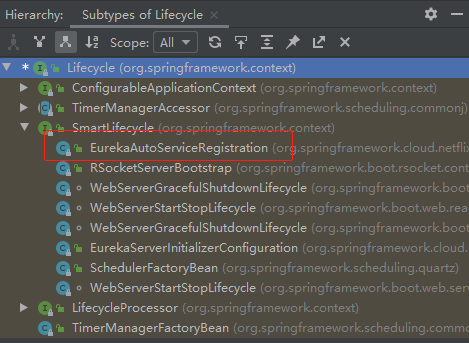

注意：Eureka Client在1版本是必須要加@EnableDiscoveryClient注解的，2版本@EnableDiscoveryClient注解加不加都沒有影響。
3，EurekaClientConfig和EurekaInstanceConfig
@Configuration(proxyBeanMethods = false)
@EnableConfigurationProperties
@ConditionalOnClass(EurekaClientConfig.class)
@ConditionalOnProperty(value = "eureka.client.enabled", matchIfMissing = true)
@ConditionalOnDiscoveryEnabled
@AutoConfigureBefore({ NoopDiscoveryClientAutoConfiguration.class,
CommonsClientAutoConfiguration.class, ServiceRegistryAutoConfiguration.class })
@AutoConfigureAfter(name = {
"org.springframework.cloud.netflix.eureka.config.DiscoveryClientOptionalArgsConfiguration",
"org.springframework.cloud.autoconfigure.RefreshAutoConfiguration",
"org.springframework.cloud.netflix.eureka.EurekaDiscoveryClientConfiguration",
"org.springframework.cloud.client.serviceregistry.AutoServiceRegistrationAutoConfiguration" })
public class EurekaClientAutoConfiguration {
//省略部分代碼
@Bean
@ConditionalOnMissingBean(value = EurekaClientConfig.class,
search = SearchStrategy.CURRENT)
public EurekaClientConfigBean eurekaClientConfigBean(ConfigurableEnvironment env) {
return new EurekaClientConfigBean();
}
@Bean
@ConditionalOnMissingBean(value = EurekaInstanceConfig.class,
search = SearchStrategy.CURRENT)
public EurekaInstanceConfigBean eurekaInstanceConfigBean(InetUtils inetUtils,
ManagementMetadataProvider managementMetadataProvider) {
String hostname = getProperty("eureka.instance.hostname");
boolean preferIpAddress = Boolean
.parseBoolean(getProperty("eureka.instance.prefer-ip-address"));
String ipAddress = getProperty("eureka.instance.ip-address");
boolean isSecurePortEnabled = Boolean
.parseBoolean(getProperty("eureka.instance.secure-port-enabled"));
String serverContextPath = env.getProperty("server.servlet.context-path", "/");
int serverPort = Integer.parseInt(
env.getProperty("server.port", env.getProperty("port", "8080")));
Integer managementPort = env.getProperty("management.server.port", Integer.class);
String managementContextPath = env
.getProperty("management.server.servlet.context-path");
Integer jmxPort = env.getProperty("com.sun.management.jmxremote.port",
Integer.class);
EurekaInstanceConfigBean instance = new EurekaInstanceConfigBean(inetUtils);
instance.setNonSecurePort(serverPort);
instance.setInstanceId(getDefaultInstanceId(env));
instance.setPreferIpAddress(preferIpAddress);
instance.setSecurePortEnabled(isSecurePortEnabled);
if (StringUtils.hasText(ipAddress)) {
instance.setIpAddress(ipAddress);
}
if (isSecurePortEnabled) {
instance.setSecurePort(serverPort);
}
if (StringUtils.hasText(hostname)) {
instance.setHostname(hostname);
}
String statusPageUrlPath = getProperty("eureka.instance.status-page-url-path");
String healthCheckUrlPath = getProperty("eureka.instance.health-check-url-path");
if (StringUtils.hasText(statusPageUrlPath)) {
instance.setStatusPageUrlPath(statusPageUrlPath);
}
if (StringUtils.hasText(healthCheckUrlPath)) {
instance.setHealthCheckUrlPath(healthCheckUrlPath);
}
ManagementMetadata metadata = managementMetadataProvider.get(instance, serverPort,
serverContextPath, managementContextPath, managementPort);
if (metadata != null) {
instance.setStatusPageUrl(metadata.getStatusPageUrl());
instance.setHealthCheckUrl(metadata.getHealthCheckUrl());
if (instance.isSecurePortEnabled()) {
instance.setSecureHealthCheckUrl(metadata.getSecureHealthCheckUrl());
}
Map<String, String> metadataMap = instance.getMetadataMap();
metadataMap.computeIfAbsent("management.port",
k -> String.valueOf(metadata.getManagementPort()));
}
else {
// without the metadata the status and health check URLs will not be set
// and the status page and health check url paths will not include the
// context path so set them here
if (StringUtils.hasText(managementContextPath)) {
instance.setHealthCheckUrlPath(
managementContextPath + instance.getHealthCheckUrlPath());
instance.setStatusPageUrlPath(
managementContextPath + instance.getStatusPageUrlPath());
}
}
setupJmxPort(instance, jmxPort);
return instance;
}
//省略部分代碼
}
EurekaClientConfig
EurekaClientConfig是個接口，其實現類是EurekaClientConfigBean，此類封裝了以"eureka.client"開頭的配置信息如：application.yaml中
eureka:
client:
# Eureka服務器的地址，類型為HashMap，缺省的Key為 defaultZone；缺省的Value為 http://localhost:8761/eureka
# 如果服務注冊中心為高可用集群時，多個注冊中心地址以逗號分隔。
service-url:
defaultZone: http://euk-server1:7001/eureka/
# 是否向注冊中心注冊自己，缺省：true
register-with-eureka: true
# 是否從Eureka獲取注冊信息，缺省：true
fetch-registry: true
# 客戶端拉取服務注冊信息間隔，單位：秒，缺省：30
registry-fetch-interval-seconds: 30
# 是否啟用客戶端健康檢查
healthcheck:
enabled: true
# 連接Eureka服務器的超時時間，單位：秒，缺省：5
eureka-server-connect-timeout-seconds: 5
# 從Eureka服務器讀取信息的超時時間，單位：秒，缺省：8
eureka-server-read-timeout-seconds: 8
# 獲取實例時是否只保留狀態為 UP 的實例，缺省：true
filter-only-up-instances: true
# Eureka服務端連接空閑時的關閉時間，單位：秒，缺省：30
eureka-connection-idle-timeout-seconds: 30
# 從Eureka客戶端到所有Eureka服務端的連接總數，缺省：200
eureka-server-total-connections: 200
# 從Eureka客戶端到每個Eureka服務主機的連接總數，缺省：50
eureka-server-total-connections-per-host: 50
EurekaInstanceConfig
EurekaInstanceConfig是個接口，其實現類是EurekaInstanceConfigBean，此類封裝了以"eureka.instance"開頭的配置信息，主要用于構建InstanceInfo。如：application.yaml中
eureka:
instance:
# 應用實例主機名
hostname: euk-client1
# 服務名，默認取 spring.application.name 配置值，如果沒有則為 unknown
appname: EurekaClient
# 實例ID
instance-id: EurekaClientInstance1
# 服務失效時間，失效的服務將被剔除。單位：秒，默認：90
lease-expiration-duration-in-seconds: 90
# 服務續約（心跳）頻率，單位：秒，缺省30
lease-renewal-interval-in-seconds: 30
4，InstanceInfo
InstanceInfo封裝了將被發送到Eureka Server進行注冊的服務實例元數據。它在Eureka Server列表中代表一個服務實例，其他服務可以通過instanceInfo了解到該服務的實例相關信息，包括地址等，從而發起請求。
public class InstanceInfo {
//省略部分代碼
public InstanceInfo(
@JsonProperty("instanceId") String instanceId,
@JsonProperty("app") String appName,
@JsonProperty("appGroupName") String appGroupName,
@JsonProperty("ipAddr") String ipAddr,
@JsonProperty("sid") String sid,
@JsonProperty("port") PortWrapper port,
@JsonProperty("securePort") PortWrapper securePort,
@JsonProperty("homePageUrl") String homePageUrl,
@JsonProperty("statusPageUrl") String statusPageUrl,
@JsonProperty("healthCheckUrl") String healthCheckUrl,
@JsonProperty("secureHealthCheckUrl") String secureHealthCheckUrl,
@JsonProperty("vipAddress") String vipAddress,
@JsonProperty("secureVipAddress") String secureVipAddress,
@JsonProperty("countryId") int countryId,
@JsonProperty("dataCenterInfo") DataCenterInfo dataCenterInfo,
@JsonProperty("hostName") String hostName,
@JsonProperty("status") InstanceStatus status,
@JsonProperty("overriddenstatus") InstanceStatus overriddenStatus,
@JsonProperty("overriddenStatus") InstanceStatus overriddenStatusAlt,
@JsonProperty("leaseInfo") LeaseInfo leaseInfo,
@JsonProperty("isCoordinatingDiscoveryServer") Boolean isCoordinatingDiscoveryServer,
@JsonProperty("metadata") HashMap<String, String> metadata,
@JsonProperty("lastUpdatedTimestamp") Long lastUpdatedTimestamp,
@JsonProperty("lastDirtyTimestamp") Long lastDirtyTimestamp,
@JsonProperty("actionType") ActionType actionType,
@JsonProperty("asgName") String asgName) {
this.instanceId = instanceId;
this.sid = sid;
this.appName = StringCache.intern(appName);
this.appGroupName = StringCache.intern(appGroupName);
this.ipAddr = ipAddr;
this.port = port == null ? 0 : port.getPort();
this.isUnsecurePortEnabled = port != null && port.isEnabled();
this.securePort = securePort == null ? 0 : securePort.getPort();
this.isSecurePortEnabled = securePort != null && securePort.isEnabled();
this.homePageUrl = homePageUrl;
this.statusPageUrl = statusPageUrl;
this.healthCheckUrl = healthCheckUrl;
this.secureHealthCheckUrl = secureHealthCheckUrl;
this.vipAddress = StringCache.intern(vipAddress);
this.secureVipAddress = StringCache.intern(secureVipAddress);
this.countryId = countryId;
this.dataCenterInfo = dataCenterInfo;
this.hostName = hostName;
this.status = status;
this.overriddenStatus = overriddenStatus == null ? overriddenStatusAlt : overriddenStatus;
this.leaseInfo = leaseInfo;
this.isCoordinatingDiscoveryServer = isCoordinatingDiscoveryServer;
this.lastUpdatedTimestamp = lastUpdatedTimestamp;
this.lastDirtyTimestamp = lastDirtyTimestamp;
this.actionType = actionType;
this.asgName = StringCache.intern(asgName);
// ---------------------------------------------------------------
// for compatibility
if (metadata == null) {
this.metadata = Collections.emptyMap();
} else if (metadata.size() == 1) {
this.metadata = removeMetadataMapLegacyValues(metadata);
} else {
this.metadata = metadata;
}
if (sid == null) {
this.sid = SID_DEFAULT;
}
}
//省略部分代碼
}
在ApplicationInfoManager中有一個方法：
public class ApplicationInfoManager {
//省略部分代碼
public void initComponent(EurekaInstanceConfig config) {
try {
this.config = config;
this.instanceInfo = new EurekaConfigBasedInstanceInfoProvider(config).get();
} catch (Throwable e) {
throw new RuntimeException("Failed to initialize ApplicationInfoManager", e);
}
}
//省略部分代碼
}
通過EurekaInstanceConfig構造instanceInfo。
5，服務發現
DiscoveryClient是在spring cloud中定義的，用于服務發現的頂級接口：
package org.springframework.cloud.client.discovery;
public interface DiscoveryClient extends Ordered {
// 獲取實現類的描述。
String description();
// 通過服務id查詢服務實例信息列表。
List<ServiceInstance> getInstances(String serviceId);
// 獲取所有服務實例id
List<String> getServices();
}

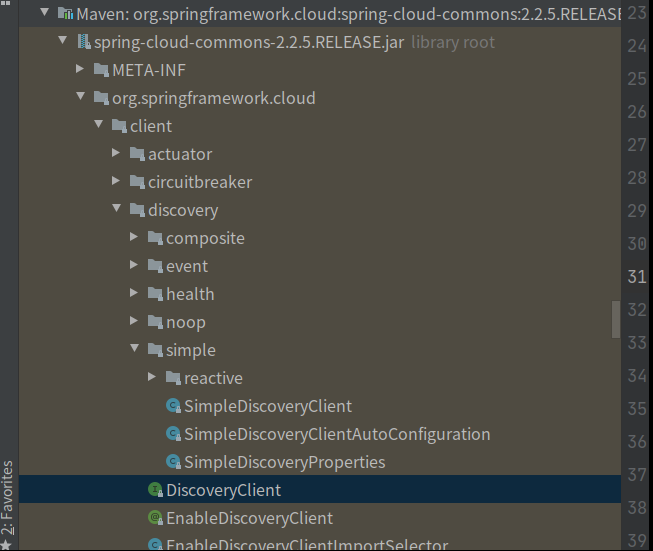

spring-cloud-commons-2.2.1.realease包下，org.springframework.cloud.client.discovery.DiscoveryClient接口。定義用來服務發現的客戶端接口，是客戶端進行服務發現的核心接口，在common中可以看到其地位。在Netflix Eureka和Consul中都有具體的實現類。
我們來看Spring Cloud中Eureka的實現：
package org.springframework.cloud.netflix.eureka;
public class EurekaDiscoveryClient implements DiscoveryClient {
/**
* Client description {@link String}.
*/
public static final String DESCRIPTION = "Spring Cloud Eureka Discovery Client";
private final EurekaClient eurekaClient;
private final EurekaClientConfig clientConfig;
@Deprecated
public EurekaDiscoveryClient(EurekaInstanceConfig config, EurekaClient eurekaClient) {
this(eurekaClient, eurekaClient.getEurekaClientConfig());
}
public EurekaDiscoveryClient(EurekaClient eurekaClient,
EurekaClientConfig clientConfig) {
this.clientConfig = clientConfig;
this.eurekaClient = eurekaClient;
}
@Override
public String description() {
return DESCRIPTION;
}
@Override
public List<ServiceInstance> getInstances(String serviceId) {
List<InstanceInfo> infos = this.eurekaClient.getInstancesByVipAddress(serviceId,
false);
List<ServiceInstance> instances = new ArrayList<>();
for (InstanceInfo info : infos) {
instances.add(new EurekaServiceInstance(info));
}
return instances;
}
@Override
public List<String> getServices() {
Applications applications = this.eurekaClient.getApplications();
if (applications == null) {
return Collections.emptyList();
}
List<Application> registered = applications.getRegisteredApplications();
List<String> names = new ArrayList<>();
for (Application app : registered) {
if (app.getInstances().isEmpty()) {
continue;
}
names.add(app.getName().toLowerCase());
}
return names;
}
@Override
public int getOrder() {
return clientConfig instanceof Ordered ? ((Ordered) clientConfig).getOrder()
: DiscoveryClient.DEFAULT_ORDER;
}
/**
* An Eureka-specific {@link ServiceInstance} implementation. Extends
* {@link org.springframework.cloud.netflix.eureka.EurekaServiceInstance} for
* backwards compatibility.
*
* @deprecated In favor of
* {@link org.springframework.cloud.netflix.eureka.EurekaServiceInstance}.
*/
@Deprecated
public static class EurekaServiceInstance
extends org.springframework.cloud.netflix.eureka.EurekaServiceInstance {
public EurekaServiceInstance(InstanceInfo instance) {
super(instance);
}
}
}
EurekaDiscoveryClient類實現了DiscoveryClient接口，類的邏輯是通過組合了com.netflix.discovery.EurekaClient來實現。也就是說spring cloud中通過組合了netflix的eureka-client包來實現服務發現的。
下面我們來走進netflix的eureka-client包下看EurekaClient接口以及它的實現類DiscoveryClient：
package com.netflix.discovery;
public class DiscoveryClient implements EurekaClient {
// 省略部分代碼
// 服務注冊
boolean register() throws Throwable {
logger.info(PREFIX + "{}: registering service...", appPathIdentifier);
EurekaHttpResponse<Void> httpResponse;
try {
httpResponse = eurekaTransport.registrationClient.register(instanceInfo);
} catch (Exception e) {
logger.warn(PREFIX + "{} - registration failed {}", appPathIdentifier, e.getMessage(), e);
throw e;
}
if (logger.isInfoEnabled()) {
logger.info(PREFIX + "{} - registration status: {}", appPathIdentifier, httpResponse.getStatusCode());
}
return httpResponse.getStatusCode() == Status.NO_CONTENT.getStatusCode();
}
// 服務續約
boolean renew() {
EurekaHttpResponse<InstanceInfo> httpResponse;
try {
httpResponse = eurekaTransport.registrationClient.sendHeartBeat(instanceInfo.getAppName(), instanceInfo.getId(), instanceInfo, null);
logger.debug(PREFIX + "{} - Heartbeat status: {}", appPathIdentifier, httpResponse.getStatusCode());
if (httpResponse.getStatusCode() == Status.NOT_FOUND.getStatusCode()) {
REREGISTER_COUNTER.increment();
logger.info(PREFIX + "{} - Re-registering apps/{}", appPathIdentifier, instanceInfo.getAppName());
long timestamp = instanceInfo.setIsDirtyWithTime();
boolean success = register();
if (success) {
instanceInfo.unsetIsDirty(timestamp);
}
return success;
}
return httpResponse.getStatusCode() == Status.OK.getStatusCode();
} catch (Throwable e) {
logger.error(PREFIX + "{} - was unable to send heartbeat!", appPathIdentifier, e);
return false;
}
}
// 服務下線
@PreDestroy
@Override
public synchronized void shutdown() {
if (isShutdown.compareAndSet(false, true)) {
logger.info("Shutting down DiscoveryClient ...");
if (statusChangeListener != null && applicationInfoManager != null) {
applicationInfoManager.unregisterStatusChangeListener(statusChangeListener.getId());
}
cancelScheduledTasks();
// If APPINFO was registered
if (applicationInfoManager != null
&& clientConfig.shouldRegisterWithEureka()
&& clientConfig.shouldUnregisterOnShutdown()) {
applicationInfoManager.setInstanceStatus(InstanceStatus.DOWN);
unregister();
}
if (eurekaTransport != null) {
eurekaTransport.shutdown();
}
heartbeatStalenessMonitor.shutdown();
registryStalenessMonitor.shutdown();
Monitors.unregisterObject(this);
logger.info("Completed shut down of DiscoveryClient");
}
}
// 省略部分代碼
}
EurekaClient有一個注解@ImplementedBy(DiscoveryClient.class)，此類的默認實現類：com.netflix.discovery.DiscoveryClient。提供了:
- 服務注冊到server方法register()。
- 續約boolean renew()。
- 下線public synchronized void shutdown()。
- 查詢服務列表 等功能。
此類DiscoveryClient正是上面spring cloud包下EurekaDiscoveryClient類成員變量EurekaClient接口的具體實現。
EurekaClient繼承了LookupService：
LookupService作用：發現活躍的服務實例。
package com.netflix.discovery.shared;
public interface LookupService<T> {
// 根據服務實例注冊的appName來獲取封裝有相同appName的服務實例信息容器
Application getApplication(String appName);
// 獲取所有的服務實例信息
Applications getApplications();
//根據實例id，獲取服務實例信息
List<InstanceInfo> getInstancesById(String id);
}
- 上面提到一個
Application，它持有服務實例信息列表。它是同一個服務的集群信息。比如EurekaClient1的所有服務信息，這些服務都在EurekaClient1服務名下面。 Applications是注冊表中，所有服務實例信息的集合。- 而
InstanceInfo代表一個服務實例的信息。
二，Eureka Client啟動
我們回到啟動類EurekaClientAutoConfiguration中
@Configuration(proxyBeanMethods = false)
@EnableConfigurationProperties
@ConditionalOnClass(EurekaClientConfig.class)
@ConditionalOnProperty(value = "eureka.client.enabled", matchIfMissing = true)
@ConditionalOnDiscoveryEnabled
@AutoConfigureBefore({ NoopDiscoveryClientAutoConfiguration.class,
CommonsClientAutoConfiguration.class, ServiceRegistryAutoConfiguration.class })
@AutoConfigureAfter(name = {
"org.springframework.cloud.netflix.eureka.config.DiscoveryClientOptionalArgsConfiguration",
"org.springframework.cloud.autoconfigure.RefreshAutoConfiguration",
"org.springframework.cloud.netflix.eureka.EurekaDiscoveryClientConfiguration",
"org.springframework.cloud.client.serviceregistry.AutoServiceRegistrationAutoConfiguration" })
public class EurekaClientAutoConfiguration {
@Configuration(proxyBeanMethods = false)
@ConditionalOnMissingRefreshScope
protected static class EurekaClientConfiguration {
@Autowired
private ApplicationContext context;
@Autowired
private AbstractDiscoveryClientOptionalArgs<?> optionalArgs;
@Bean(destroyMethod = "shutdown")
@ConditionalOnMissingBean(value = EurekaClient.class,
search = SearchStrategy.CURRENT)
public EurekaClient eurekaClient(ApplicationInfoManager manager,
EurekaClientConfig config) {
return new CloudEurekaClient(manager, config, this.optionalArgs,
this.context);
}
// 省略部分代碼
}
//省略部分代碼
}
向spring容器注入了CloudEurekaClient，我們看其構造函數：
public class CloudEurekaClient extends DiscoveryClient {
public CloudEurekaClient(ApplicationInfoManager applicationInfoManager,
EurekaClientConfig config, AbstractDiscoveryClientOptionalArgs<?> args,
ApplicationEventPublisher publisher) {
// 調用父類構造函數
super(applicationInfoManager, config, args);
this.applicationInfoManager = applicationInfoManager;
this.publisher = publisher;
this.eurekaTransportField = ReflectionUtils.findField(DiscoveryClient.class,
"eurekaTransport");
ReflectionUtils.makeAccessible(this.eurekaTransportField);
}
}
看其父類DiscoveryClient構造函數：
public class DiscoveryClient implements EurekaClient {
// 省略部分代碼
@Inject
DiscoveryClient(ApplicationInfoManager applicationInfoManager, EurekaClientConfig config, AbstractDiscoveryClientOptionalArgs args,
Provider<BackupRegistry> backupRegistryProvider, EndpointRandomizer endpointRandomizer) {
if (args != null) {
this.healthCheckHandlerProvider = args.healthCheckHandlerProvider;
this.healthCheckCallbackProvider = args.healthCheckCallbackProvider;
this.eventListeners.addAll(args.getEventListeners());
this.preRegistrationHandler = args.preRegistrationHandler;
} else {
this.healthCheckCallbackProvider = null;
this.healthCheckHandlerProvider = null;
this.preRegistrationHandler = null;
}
this.applicationInfoManager = applicationInfoManager;
InstanceInfo myInfo = applicationInfoManager.getInfo();
clientConfig = config;
staticClientConfig = clientConfig;
transportConfig = config.getTransportConfig();
instanceInfo = myInfo;
if (myInfo != null) {
appPathIdentifier = instanceInfo.getAppName() + "/" + instanceInfo.getId();
} else {
logger.warn("Setting instanceInfo to a passed in null value");
}
this.backupRegistryProvider = backupRegistryProvider;
this.endpointRandomizer = endpointRandomizer;
this.urlRandomizer = new EndpointUtils.InstanceInfoBasedUrlRandomizer(instanceInfo);
localRegionApps.set(new Applications());
fetchRegistryGeneration = new AtomicLong(0);
remoteRegionsToFetch = new AtomicReference<String>(clientConfig.fetchRegistryForRemoteRegions());
remoteRegionsRef = new AtomicReference<>(remoteRegionsToFetch.get() == null ? null : remoteRegionsToFetch.get().split(","));
// shouldFetchRegistry，點其實現類EurekaClientConfigBean，找到它其實對應于：
// eureka.client.fetch-register，true：表示client從server拉取注冊表信息。
if (config.shouldFetchRegistry()) {
this.registryStalenessMonitor = new ThresholdLevelsMetric(this, METRIC_REGISTRY_PREFIX + "lastUpdateSec_", new long[]{15L, 30L, 60L, 120L, 240L, 480L});
} else {
this.registryStalenessMonitor = ThresholdLevelsMetric.NO_OP_METRIC;
}
if (config.shouldRegisterWithEureka()) {
this.heartbeatStalenessMonitor = new ThresholdLevelsMetric(this, METRIC_REGISTRATION_PREFIX + "lastHeartbeatSec_", new long[]{15L, 30L, 60L, 120L, 240L, 480L});
} else {
this.heartbeatStalenessMonitor = ThresholdLevelsMetric.NO_OP_METRIC;
}
logger.info("Initializing Eureka in region {}", clientConfig.getRegion());
// 如果以下兩個都為false，則直接返回，構造方法執行結束，既不服務注冊，也不服務發現。
if (!config.shouldRegisterWithEureka() && !config.shouldFetchRegistry()) {
logger.info("Client configured to neither register nor query for data.");
scheduler = null;
heartbeatExecutor = null;
cacheRefreshExecutor = null;
eurekaTransport = null;
instanceRegionChecker = new InstanceRegionChecker(new PropertyBasedAzToRegionMapper(config), clientConfig.getRegion());
DiscoveryManager.getInstance().setDiscoveryClient(this);
DiscoveryManager.getInstance().setEurekaClientConfig(config);
initTimestampMs = System.currentTimeMillis();
initRegistrySize = this.getApplications().size();
registrySize = initRegistrySize;
logger.info("Discovery Client initialized at timestamp {} with initial instances count: {}",
initTimestampMs, initRegistrySize);
return; // no need to setup up an network tasks and we are done
}
try {
/**
* 兩個定時任務
*/
// 定義了一個基于線程池的定時器線程池，大小為2。
scheduler = Executors.newScheduledThreadPool(2,
new ThreadFactoryBuilder()
.setNameFormat("DiscoveryClient-%d")
.setDaemon(true)
.build());
// 用于發送心跳
heartbeatExecutor = new ThreadPoolExecutor(
1, clientConfig.getHeartbeatExecutorThreadPoolSize(), 0, TimeUnit.SECONDS,
new SynchronousQueue<Runnable>(),
new ThreadFactoryBuilder()
.setNameFormat("DiscoveryClient-HeartbeatExecutor-%d")
.setDaemon(true)
.build()
); // use direct handoff
// 用于刷新緩存
cacheRefreshExecutor = new ThreadPoolExecutor(
1, clientConfig.getCacheRefreshExecutorThreadPoolSize(), 0, TimeUnit.SECONDS,
new SynchronousQueue<Runnable>(),
new ThreadFactoryBuilder()
.setNameFormat("DiscoveryClient-CacheRefreshExecutor-%d")
.setDaemon(true)
.build()
); // use direct handoff
/**
* client和server交互的Jersey客戶端
*/
// 它是eureka Client和eureka server進行http交互jersey客戶端。
// 點開EurekaTransport，看到許多httpclient相關的屬性。
eurekaTransport = new EurekaTransport();
scheduleServerEndpointTask(eurekaTransport, args);
AzToRegionMapper azToRegionMapper;
if (clientConfig.shouldUseDnsForFetchingServiceUrls()) {
azToRegionMapper = new DNSBasedAzToRegionMapper(clientConfig);
} else {
azToRegionMapper = new PropertyBasedAzToRegionMapper(clientConfig);
}
if (null != remoteRegionsToFetch.get()) {
azToRegionMapper.setRegionsToFetch(remoteRegionsToFetch.get().split(","));
}
instanceRegionChecker = new InstanceRegionChecker(azToRegionMapper, clientConfig.getRegion());
} catch (Throwable e) {
throw new RuntimeException("Failed to initialize DiscoveryClient!", e);
}
/**
* 拉取注冊信息
*/
// eureka.client.fetch-register，true：表示client從server拉取注冊表信息。
if (clientConfig.shouldFetchRegistry()) {
try {
// 從eureka server拉取注冊表中的信息。
boolean primaryFetchRegistryResult = fetchRegistry(false);
if (!primaryFetchRegistryResult) {
logger.info("Initial registry fetch from primary servers failed");
}
boolean backupFetchRegistryResult = true;
// fetchRegistryFromBackup()：將注冊表緩存到本地，可以就近獲取其他服務信息，減少于server的交互。
if (!primaryFetchRegistryResult && !fetchRegistryFromBackup()) {
backupFetchRegistryResult = false;
logger.info("Initial registry fetch from backup servers failed");
}
if (!primaryFetchRegistryResult && !backupFetchRegistryResult && clientConfig.shouldEnforceFetchRegistryAtInit()) {
throw new IllegalStateException("Fetch registry error at startup. Initial fetch failed.");
}
} catch (Throwable th) {
logger.error("Fetch registry error at startup: {}", th.getMessage());
throw new IllegalStateException(th);
}
}
if (this.preRegistrationHandler != null) {
this.preRegistrationHandler.beforeRegistration();
}
/**
* 服務注冊
*/
if (clientConfig.shouldRegisterWithEureka() && clientConfig.shouldEnforceRegistrationAtInit()) {
try {
// 注冊失敗拋異常。
if (!register() ) {
throw new IllegalStateException("Registration error at startup. Invalid server response.");
}
} catch (Throwable th) {
logger.error("Registration error at startup: {}", th.getMessage());
throw new IllegalStateException(th);
}
}
/**
* 啟動定時任務
*/
// 此方法中，啟動3個定時任務。方法內有statusChangeListener，
// 按需注冊是一個事件StatusChangeEvent，狀態改變，則向server注冊。
initScheduledTasks();
try {
Monitors.registerObject(this);
} catch (Throwable e) {
logger.warn("Cannot register timers", e);
}
// This is a bit of hack to allow for existing code using DiscoveryManager.getInstance()
// to work with DI'd DiscoveryClient
DiscoveryManager.getInstance().setDiscoveryClient(this);
DiscoveryManager.getInstance().setEurekaClientConfig(config);
initTimestampMs = System.currentTimeMillis();
initRegistrySize = this.getApplications().size();
registrySize = initRegistrySize;
logger.info("Discovery Client initialized at timestamp {} with initial instances count: {}",
initTimestampMs, initRegistrySize);
}
// 省略部分代碼
}
此函數中依次執行了 從eureka server中拉取注冊表，服務注冊，初始化發送心跳，緩存刷新（定時拉取注冊表信息），按需注冊定時任務等，貫穿了Eureka Client啟動階段的各項工作。
總結DiscoveryClient構造關鍵過程：
- 初始化一堆信息。
- 拉取注冊表信息。
- 向server注冊自己。
- 初始化3個任務。
下面我們來詳細看一下這幾個過程：
1，拉取注冊表信息
上面的fetchRegistry(false)，點進去：
public class DiscoveryClient implements EurekaClient {
// 省略部分代碼
//拉取服務信息
private boolean fetchRegistry(boolean forceFullRegistryFetch) {
Stopwatch tracer = FETCH_REGISTRY_TIMER.start();
try {
Applications applications = getApplications();
// 如果增量式拉取被禁止或第一次拉取注冊表，則進行全量拉取
if (clientConfig.shouldDisableDelta()
|| (!Strings.isNullOrEmpty(clientConfig.getRegistryRefreshSingleVipAddress()))
|| forceFullRegistryFetch
|| (applications == null)
|| (applications.getRegisteredApplications().size() == 0)
|| (applications.getVersion() == -1)) //Client application does not have latest library supporting delta
{
// 全量拉去
getAndStoreFullRegistry();
} else {
// 否則進行增量拉取注冊表信息
getAndUpdateDelta(applications);
}
} catch (Throwable e) {
return false;
} finally {
if (tracer != null) {
tracer.stop();
}
}
// 在更新實例遠程狀態之前通知有關緩存刷新的信息
onCacheRefreshed();
// 根據緩存中保存的刷新數據更新遠程狀態
updateInstanceRemoteStatus();
// 拉取成功，返回true
return true;
}
// 全量拉取
private void getAndStoreFullRegistry() throws Throwable {
long currentUpdateGeneration = fetchRegistryGeneration.get();
logger.info("Getting all instance registry info from the eureka server");
Applications apps = null;
EurekaHttpResponse<Applications> httpResponse = clientConfig.getRegistryRefreshSingleVipAddress() == null
? eurekaTransport.queryClient.getApplications(remoteRegionsRef.get())
: eurekaTransport.queryClient.getVip(clientConfig.getRegistryRefreshSingleVipAddress(), remoteRegionsRef.get());
if (httpResponse.getStatusCode() == Status.OK.getStatusCode()) {
apps = httpResponse.getEntity();
}
logger.info("The response status is {}", httpResponse.getStatusCode());
if (apps == null) {
logger.error("The application is null for some reason. Not storing this information");
} else if (fetchRegistryGeneration.compareAndSet(currentUpdateGeneration, currentUpdateGeneration + 1)) {
localRegionApps.set(this.filterAndShuffle(apps));
logger.debug("Got full registry with apps hashcode {}", apps.getAppsHashCode());
} else {
logger.warn("Not updating applications as another thread is updating it already");
}
}
}
1，全量拉取
// 全量拉取
private void getAndStoreFullRegistry() throws Throwable {
long currentUpdateGeneration = fetchRegistryGeneration.get();
logger.info("Getting all instance registry info from the eureka server");
Applications apps = null;
EurekaHttpResponse<Applications> httpResponse = clientConfig.getRegistryRefreshSingleVipAddress() == null
? eurekaTransport.queryClient.getApplications(remoteRegionsRef.get())
: eurekaTransport.queryClient.getVip(clientConfig.getRegistryRefreshSingleVipAddress(), remoteRegionsRef.get());
if (httpResponse.getStatusCode() == Status.OK.getStatusCode()) {
apps = httpResponse.getEntity();
}
logger.info("The response status is {}", httpResponse.getStatusCode());
if (apps == null) {
logger.error("The application is null for some reason. Not storing this information");
} else if (fetchRegistryGeneration.compareAndSet(currentUpdateGeneration, currentUpdateGeneration + 1)) {
localRegionApps.set(this.filterAndShuffle(apps));
logger.debug("Got full registry with apps hashcode {}", apps.getAppsHashCode());
} else {
logger.warn("Not updating applications as another thread is updating it already");
}
}
有一方法：eurekaTransport.queryClient.getApplications。通過debug發現 實現類是AbstractJerseyEurekaHttpClient，點開，debug出 webResource地址為：http://root:root@eureka-7900:7900/eureka/apps/，此端點用于獲取server中所有的注冊表信息。
getAndStoreFullRegistry()可能被多個線程同時調用，導致新拉取的注冊表被舊的覆蓋(如果新拉取的動作設置apps阻塞的情況下）。
此時用了AutomicLong來進行版本管理，如果更新時版本不一致，不保存apps。
通過這個判斷fetchRegistryGeneration.compareAndSet(currentUpdateGeneration, currentUpdateGeneration + 1)，如果版本一致，并設置新版本（+1），接著執行localRegionApps.set(this.filterAndShuffle(apps));過濾并洗牌apps。
點開this.filterAndShuffle(apps)實現，繼續點apps.shuffleAndIndexInstances，繼續點shuffleInstances，繼續點application.shuffleAndStoreInstances，繼續點_shuffleAndStoreInstances，發現if (filterUpInstances && InstanceStatus.UP != instanceInfo.getStatus())。只保留狀態為UP的服務。
2，增量拉取
private void getAndUpdateDelta(Applications applications) throws Throwable {
long currentUpdateGeneration = fetchRegistryGeneration.get();
Applications delta = null;
EurekaHttpResponse<Applications> httpResponse = eurekaTransport.queryClient.getDelta(remoteRegionsRef.get());
if (httpResponse.getStatusCode() == Status.OK.getStatusCode()) {
delta = httpResponse.getEntity();
}
if (delta == null) {
logger.warn("The server does not allow the delta revision to be applied because it is not safe. "
+ "Hence got the full registry.");
getAndStoreFullRegistry();
} else if (fetchRegistryGeneration.compareAndSet(currentUpdateGeneration, currentUpdateGeneration + 1)) {
logger.debug("Got delta update with apps hashcode {}", delta.getAppsHashCode());
String reconcileHashCode = "";
if (fetchRegistryUpdateLock.tryLock()) {
try {
updateDelta(delta);
reconcileHashCode = getReconcileHashCode(applications);
} finally {
fetchRegistryUpdateLock.unlock();
}
} else {
logger.warn("Cannot acquire update lock, aborting getAndUpdateDelta");
}
// There is a diff in number of instances for some reason
if (!reconcileHashCode.equals(delta.getAppsHashCode()) || clientConfig.shouldLogDeltaDiff()) {
reconcileAndLogDifference(delta, reconcileHashCode); // this makes a remoteCall
}
} else {
logger.warn("Not updating application delta as another thread is updating it already");
logger.debug("Ignoring delta update with apps hashcode {}, as another thread is updating it already", delta.getAppsHashCode());
}
}
- 通過
getDelta方法，看到實際拉取的地址是：apps/delta，如果獲取到的delta為空，則全量拉取。 - 通常來講是3分鐘之內注冊表的信息變化（在server端判斷），獲取到delta后，會更新本地注冊表。
- 增量式拉取是為了維護client和server端 注冊表的一致性，防止本地數據過久，而失效，采用增量式拉取的方式，減少了client和server的通信量。
- client有一個注冊表緩存刷新定時器，專門負責維護兩者之間的信息同步，但是當增量出現意外時，定時器將執行，全量拉取以更新本地緩存信息。
更新本地注冊表方法updateDelta，有一個細節。
if (ActionType.ADDED.equals(instance.getActionType())) ，public enum ActionType {
ADDED, // Added in the discovery server
MODIFIED, // Changed in the discovery server
DELETED
// Deleted from the discovery server
}
在InstanceInfo instance中有一個instance.getActionType()，ADDED和MODIFIED狀態的將更新本地注冊表applications.addApplication，DELETED將從本地剔除掉existingApp.removeInstance(instance)。
2，服務注冊
好了拉取完eureka server中的注冊表了，接著進行服務注冊。回到DiscoveryClient構造函數。
拉取fetchRegistry完后進行register注冊。由于構造函數開始時已經將服務實例元數據封裝好了instanceInfo，所以此處之間向server發送instanceInfo：
public class DiscoveryClient implements EurekaClient {
// 省略部分代碼
//服務注冊
boolean register() throws Throwable {
logger.info(PREFIX + "{}: registering service...", appPathIdentifier);
EurekaHttpResponse<Void> httpResponse;
try {
httpResponse = eurekaTransport.registrationClient.register(instanceInfo);
} catch (Exception e) {
logger.warn(PREFIX + "{} - registration failed {}", appPathIdentifier, e.getMessage(), e);
throw e;
}
if (logger.isInfoEnabled()) {
logger.info(PREFIX + "{} - registration status: {}", appPathIdentifier, httpResponse.getStatusCode());
}
// 204狀態碼，則注冊成功。
return httpResponse.getStatusCode() == Status.NO_CONTENT.getStatusCode();
}
// 省略部分代碼
}
3，初始化3個定時任務
initScheduledTasks()方法初始化3個定時任務。
- client會定時向server發送心跳，維持自己服務租約的有效性，用心跳定時任務實現;
- 而server中會有不同的服務實例注冊進來，一進一出，就需要數據的同步。所以client需要定時從server拉取注冊表信息，用緩存定時任務實現;
- client如果有變化，也會及時更新server中自己的信息，用按需注冊定時任務實現。
沒錯就是這三個定時任務，進 initScheduledTasks()方法中：
public class DiscoveryClient implements EurekaClient {
// 省略部分代碼
//初始化心跳定時任務，緩存定時任務，按需注冊定時任務
private void initScheduledTasks() {
//從server拉取注冊表信息。
if (clientConfig.shouldFetchRegistry()) {
// 拉取的時間間隔，通過eureka.client.registry-fetch-interval-seconds進行設置。
int registryFetchIntervalSeconds = clientConfig.getRegistryFetchIntervalSeconds();
int expBackOffBound = clientConfig.getCacheRefreshExecutorExponentialBackOffBound();
// 緩存刷新定時任務
cacheRefreshTask = new TimedSupervisorTask(
"cacheRefresh",
scheduler,
cacheRefreshExecutor,
registryFetchIntervalSeconds,
TimeUnit.SECONDS,
expBackOffBound,
new CacheRefreshThread()
);
scheduler.schedule(
cacheRefreshTask,
registryFetchIntervalSeconds, TimeUnit.SECONDS);
}
if (clientConfig.shouldRegisterWithEureka()) {
// 心跳定時器，默認30秒。
int renewalIntervalInSecs = instanceInfo.getLeaseInfo().getRenewalIntervalInSecs();
int expBackOffBound = clientConfig.getHeartbeatExecutorExponentialBackOffBound();
logger.info("Starting heartbeat executor: " + "renew interval is: {}", renewalIntervalInSecs);
// 心跳定時任務
heartbeatTask = new TimedSupervisorTask(
"heartbeat",
scheduler,
heartbeatExecutor,
renewalIntervalInSecs,
TimeUnit.SECONDS,
expBackOffBound,
new HeartbeatThread()
);
scheduler.schedule(
heartbeatTask,
renewalIntervalInSecs, TimeUnit.SECONDS);
// 按需注冊定時任務實現
instanceInfoReplicator = new InstanceInfoReplicator(
this,
instanceInfo,
clientConfig.getInstanceInfoReplicationIntervalSeconds(),
2); // burstSize
statusChangeListener = new ApplicationInfoManager.StatusChangeListener() {
@Override
public String getId() {
return "statusChangeListener";
}
@Override
public void notify(StatusChangeEvent statusChangeEvent) {
if (InstanceStatus.DOWN == statusChangeEvent.getStatus() ||
InstanceStatus.DOWN == statusChangeEvent.getPreviousStatus()) {
// log at warn level if DOWN was involved
logger.warn("Saw local status change event {}", statusChangeEvent);
} else {
logger.info("Saw local status change event {}", statusChangeEvent);
}
instanceInfoReplicator.onDemandUpdate();
}
};
if (clientConfig.shouldOnDemandUpdateStatusChange()) {
applicationInfoManager.registerStatusChangeListener(statusChangeListener);
}
instanceInfoReplicator.start(clientConfig.getInitialInstanceInfoReplicationIntervalSeconds());
} else {
logger.info("Not registering with Eureka server per configuration");
}
}
// 省略部分代碼
}
1，緩存刷新定時任務
public class DiscoveryClient implements EurekaClient {
// 省略部分代碼
class CacheRefreshThread implements Runnable {
public void run() {
refreshRegistry();
}
}
void refreshRegistry() {
// 省略部分代碼
boolean success = fetchRegistry(remoteRegionsModified);
// 省略部分代碼
}
/**
* 最后回到了我們上面講過的拉取注冊表信息的方法
*/
//拉取服務信息
private boolean fetchRegistry(boolean forceFullRegistryFetch) {
Stopwatch tracer = FETCH_REGISTRY_TIMER.start();
try {
Applications applications = getApplications();
// 如果增量式拉取被禁止或第一次拉取注冊表，則進行全量拉取
if (clientConfig.shouldDisableDelta()
|| (!Strings.isNullOrEmpty(clientConfig.getRegistryRefreshSingleVipAddress()))
|| forceFullRegistryFetch
|| (applications == null)
|| (applications.getRegisteredApplications().size() == 0)
|| (applications.getVersion() == -1)) //Client application does not have latest library supporting delta
{
// 全量拉去
getAndStoreFullRegistry();
} else {
// 否則進行增量拉取注冊表信息
getAndUpdateDelta(applications);
}
} catch (Throwable e) {
return false;
} finally {
if (tracer != null) {
tracer.stop();
}
}
// 在更新實例遠程狀態之前通知有關緩存刷新的信息
onCacheRefreshed();
// 根據緩存中保存的刷新數據更新遠程狀態
updateInstanceRemoteStatus();
// 拉取成功，返回true
return true;
}
// 省略部分代碼
}
2，心跳定時任務
public class DiscoveryClient implements EurekaClient {
// 省略部分代碼
private class HeartbeatThread implements Runnable {
public void run() {
if (renew()) {
lastSuccessfulHeartbeatTimestamp = System.currentTimeMillis();
}
}
}
boolean renew() {
EurekaHttpResponse<InstanceInfo> httpResponse;
try {
httpResponse = eurekaTransport.registrationClient.sendHeartBeat(instanceInfo.getAppName(), instanceInfo.getId(), instanceInfo, null);
// 看到如果遇到404，server沒有此實例，則重新發起注冊。如果續約成功返回 200.
if (httpResponse.getStatusCode() == Status.NOT_FOUND.getStatusCode()) {
REREGISTER_COUNTER.increment();
long timestamp = instanceInfo.setIsDirtyWithTime();
boolean success = register();
if (success) {
instanceInfo.unsetIsDirty(timestamp);
}
return success;
}
return httpResponse.getStatusCode() == Status.OK.getStatusCode();
} catch (Throwable e) {
logger.error(PREFIX + "{} - was unable to send heartbeat!", appPathIdentifier, e);
return false;
}
}
//省略部分代碼
}
3，按需注冊定時任務
當instanceinfo和status發生變化時，需要向server同步，去更新自己在server中的實例信息。保證server注冊表中服務實例信息的有效和可用。
instanceInfoReplicator = new InstanceInfoReplicator(
this,
instanceInfo,
clientConfig.getInstanceInfoReplicationIntervalSeconds(),
2); // burstSize
statusChangeListener = new ApplicationInfoManager.StatusChangeListener() {
@Override
public String getId() {
return "statusChangeListener";
}
@Override
public void notify(StatusChangeEvent statusChangeEvent) {
if (InstanceStatus.DOWN == statusChangeEvent.getStatus() ||
InstanceStatus.DOWN == statusChangeEvent.getPreviousStatus()) {
// log at warn level if DOWN was involved
logger.warn("Saw local status change event {}", statusChangeEvent);
} else {
logger.info("Saw local status change event {}", statusChangeEvent);
}
instanceInfoReplicator.onDemandUpdate();
}
};
if (clientConfig.shouldOnDemandUpdateStatusChange()) {
applicationInfoManager.registerStatusChangeListener(statusChangeListener);
}
instanceInfoReplicator.start(clientConfig.getInitialInstanceInfoReplicationIntervalSeconds());
此定時任務有2個部分：
1，定時刷新服務實例信息和檢查應用狀態的變化，在服務實例信息發生改變的情況下向server重新發起注冊。InstanceInfoReplicator點進去。看到一個方法 ：
class InstanceInfoReplicator implements Runnable {
// 省略部分代碼
public void run() {
try {
// 刷新instanceinfo，如果有變化，在下次心跳時，同步向server。
discoveryClient.refreshInstanceInfo();
// 如果實例信息有變，返回數據更新時間
Long dirtyTimestamp = instanceInfo.isDirtyWithTime();
if (dirtyTimestamp != null) {
discoveryClient.register();
instanceInfo.unsetIsDirty(dirtyTimestamp);
}
} catch (Throwable t) {
logger.warn("There was a problem with the instance info replicator", t);
} finally {
// 延時執行下一個檢查任務。用于再次調用run方法，繼續檢查服務實例信息和狀態的變化
Future next = scheduler.schedule(this, replicationIntervalSeconds, TimeUnit.SECONDS);
scheduledPeriodicRef.set(next);
}
}
// 省略部分代碼
}
2，注冊狀態改變監聽器，在應用狀態發生變化時，刷新服務實例信息，在服務實例信息發生改變時向server注冊。
statusChangeListener = new ApplicationInfoManager.StatusChangeListener() {
@Override
public String getId() {
return "statusChangeListener";
}
@Override
public void notify(StatusChangeEvent statusChangeEvent) {
if (InstanceStatus.DOWN == statusChangeEvent.getStatus() ||
InstanceStatus.DOWN == statusChangeEvent.getPreviousStatus()) {
// log at warn level if DOWN was involved
logger.warn("Saw local status change event {}", statusChangeEvent);
} else {
logger.info("Saw local status change event {}", statusChangeEvent);
}
如果狀態發生改變，調用onDemandUpdate（），點onDemandUpdate進去，看到InstanceInfoReplicator.this.run();
instanceInfoReplicator.onDemandUpdate();
}
};
總結：兩部分，一部分自己去檢查，一部分等待狀態監聽事件。
三，服務下線
服務下線：在應用關閉時，client會向server注銷自己，在Discoveryclient銷毀前，會執行下面清理方法。
public class DiscoveryClient implements EurekaClient {
// 省略部分代碼
@PreDestroy
@Override
public synchronized void shutdown() {
if (isShutdown.compareAndSet(false, true)) {
logger.info("Shutting down DiscoveryClient ...");
if (statusChangeListener != null && applicationInfoManager != null) {
// 注銷監聽器
applicationInfoManager.unregisterStatusChangeListener(statusChangeListener.getId());
}
// 取消定時任務
cancelScheduledTasks();
// If APPINFO was registered
if (applicationInfoManager != null
&& clientConfig.shouldRegisterWithEureka()
&& clientConfig.shouldUnregisterOnShutdown()) {
applicationInfoManager.setInstanceStatus(InstanceStatus.DOWN);
// 服務下線
unregister();
}
// 關閉jersy客戶端
if (eurekaTransport != null) {
eurekaTransport.shutdown();
}
heartbeatStalenessMonitor.shutdown();
registryStalenessMonitor.shutdown();
Monitors.unregisterObject(this);
logger.info("Completed shut down of DiscoveryClient");
}
}
// 省略部分代碼
}
版權聲明：本文為u013277209原創文章，遵循 CC 4.0 BY-SA 版權協議，轉載請附上原文出處鏈接和本聲明。
智能推薦
SpringCloud Eureka源碼分析
Eureka核心功能點 服務注冊(register)：Eureka Client會通過發送REST請求的方式向Eureka Server注冊自己的服務，提供自身的元數 據，比如ip地址、端口、運行狀況指標的url、主頁地址等信息。Eureka Server接收到注冊請求后，就會把這些元數 據信息存儲在一個雙層的Map中。 服務續約(renew)：在服務注冊后，Eureka Clien...
SpringCloud Eureka源碼分析
老規矩，先找XXXAutoConfiguration。 EurekaClientAutoConfiguration 這個里面主要看這幾個bean： EurekaAutoServiceRegistration EurekaClient ApplicationInfoManager EurekaRegistration EurekaClient ： 這里初始化的是CloudEurekaClient，看...
LiveData詳細分析
目錄介紹 01.LiveData是什么東西 02.使用LiveData的優勢 03.使用LiveData的步驟 04.簡單使用LiveData 05.observe()和observerForever() 06.LiveData原理介紹 07.observe訂閱源碼分析 08.setValue發送源碼分析 09.observeForever源碼 10.LiveData源碼總結 00.使用LiveD...
Lifecycle詳細分析
Lifecycle源碼分析 目錄介紹 01.Lifecycle的作用是什么 02.Lifecycle的簡單使用 03.Lifecycle的使用場景 04.如何實現生命周期感知 05.注解方法如何被調用 06.addObserver調用分析 07.知識點梳理和總結一下 00.使用AAC實現bus事件總線 利用LiveData實現事件總線，替代EventBus。充分利用了生命周期感知功能，可以在act...
ConcurrentHashmap 詳細分析
詳盡的分析 JDK8 后的ConcurrentHashmap，思路分析輔以源碼走讀，徹底讀懂 ConcurrentHashmap。 簡介 放入數據 容器元素總數更新 容器擴容 協助擴容 遍歷 簡介 在從 JDK8 開始，為了提高并發度，ConcurrentHashMap的源碼進行了很大的調整。在 JDK7 中，采用的是分段鎖的思路。簡單的說，就是ConcurrentHashMap是由多個HashM...
猜你喜歡
freemarker + ItextRender 根據模板生成PDF文件
1. 制作模板 2. 獲取模板，并將所獲取的數據加載生成html文件 2. 生成PDF文件 其中由兩個地方需要注意，都是關于獲取文件路徑的問題，由于項目部署的時候是打包成jar包形式，所以在開發過程中時直接安照傳統的獲取方法沒有一點文件，但是當打包后部署，總是出錯。于是參考網上文章，先將文件讀出來到項目的臨時目錄下，然后再按正常方式加載該臨時文件； 還有一個問題至今沒有解決，就是關于生成PDF文件...
電腦空間不夠了？教你一個小秒招快速清理 Docker 占用的磁盤空間！
Docker 很占用空間，每當我們運行容器、拉取鏡像、部署應用、構建自己的鏡像時，我們的磁盤空間會被大量占用。 如果你也被這個問題所困擾，咱們就一起看一下 Docker 是如何使用磁盤空間的，以及如何回收。 docker 占用的空間可以通過下面的命令查看： TYPE 列出了docker 使用磁盤的 4 種類型： Images：所有鏡像占用的空間，包括拉取下來的鏡像，和本地構建的。 Con...
requests實現全自動PPT模板
http://www.1ppt.com/moban/ 可以免費的下載PPT模板，當然如果要人工一個個下，還是挺麻煩的，我們可以利用requests輕松下載 訪問這個主頁，我們可以看到下面的樣式 點每一個PPT模板的圖片，我們可以進入到詳細的信息頁面，翻到下面，我們可以看到對應的下載地址 點擊這個下載的按鈕，我們便可以下載對應的PPT壓縮包 那我們就開始做吧 首先，查看網頁的源代碼，我們可以看到每一...
