安裝 VS2015 和 QT-5.7.1

• 下載并安裝 VS2015 和 qt-opensource-windows-x86-msvc2015-5.7.1.exe

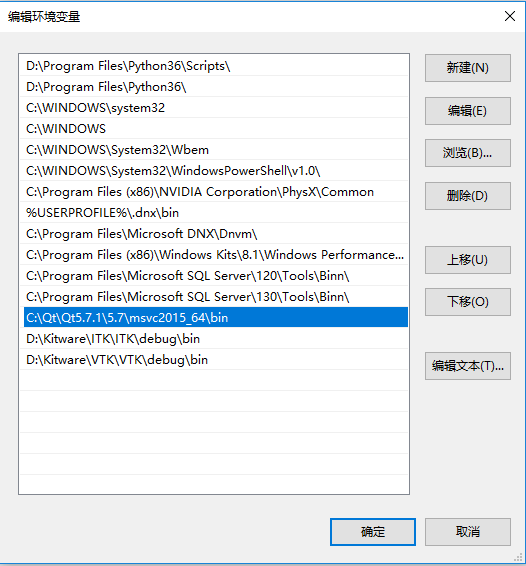

• 配置QT環境變量

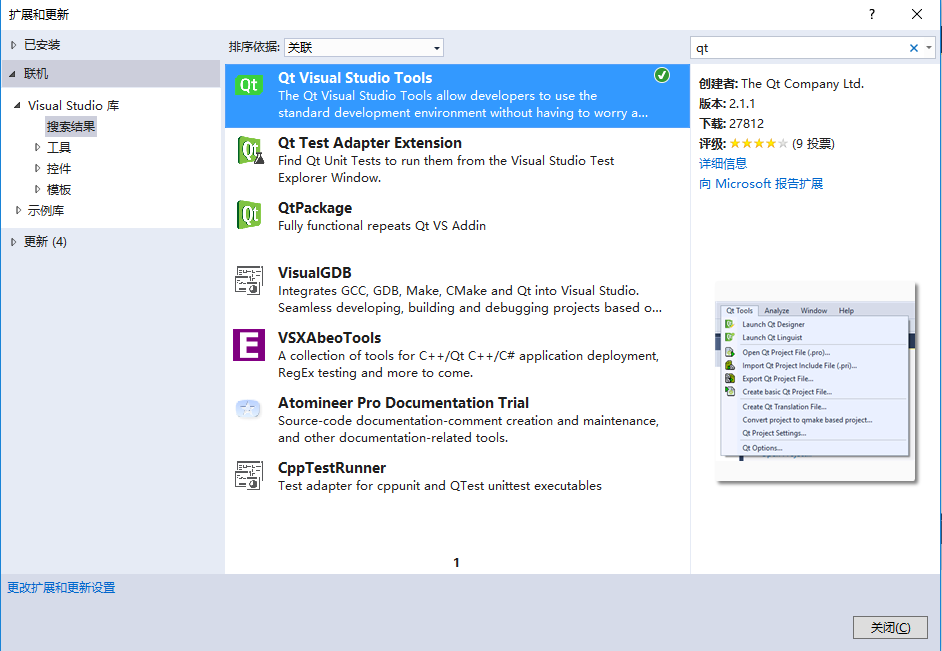

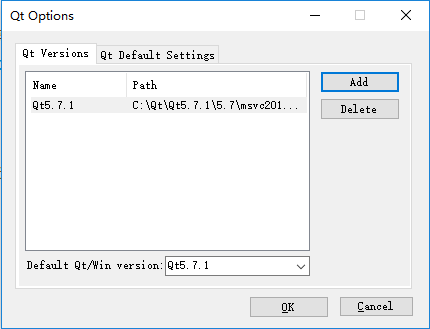

• 安裝QT-VS-TOOLS并選擇Qt版本C:\Qt\Qt5.7.1\5.7\msvc2015_64



安裝 VTK

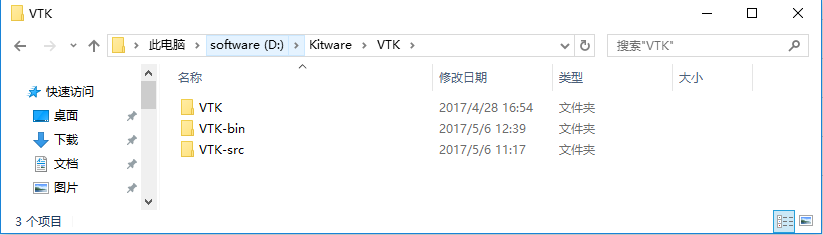

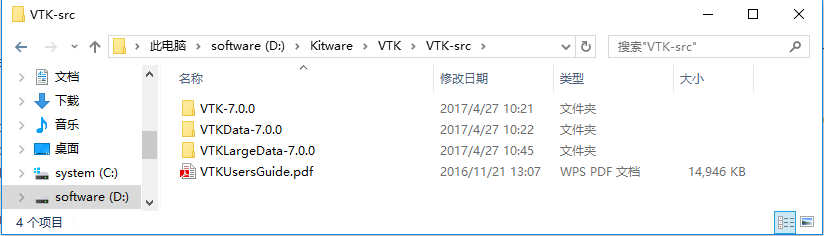

• 文件目錄如下，VTK-src放置源代碼，VTK-bin放置CMake編譯后的文件，VTK放置最終的文件,對應的下載網址 VTK


• CMake 編譯

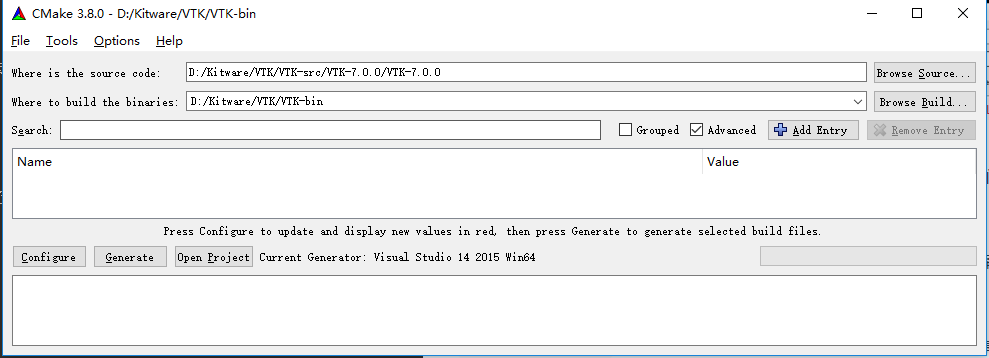

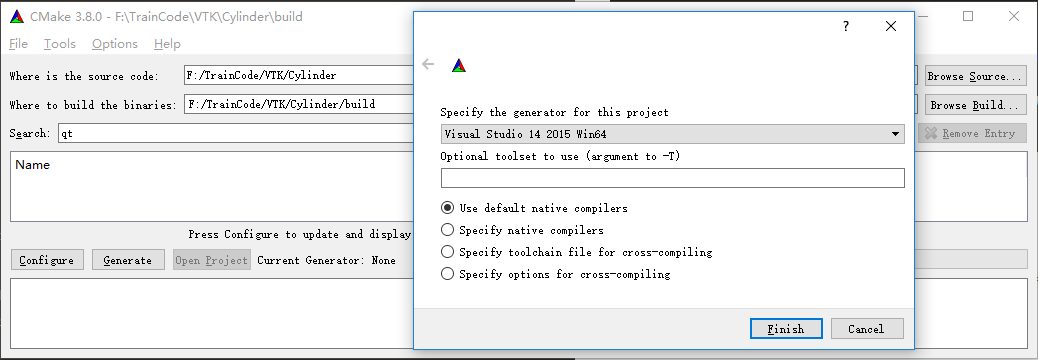

• Configure 一次

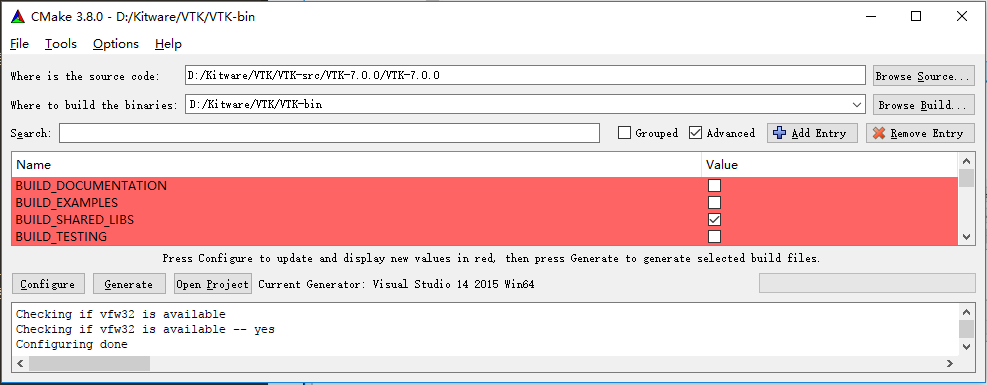

  BUILD_EXAMPLES：指明是否編譯VTK中的例子。未**可以減少編譯時間，之后也可以再進行單獨編譯。此處我們置為OFF。
  BUILD_TESTING——指明是否編譯VTK中的測試代碼。未**可以減少編譯時間，之后也可以再進行單獨編譯。此處我們置為OFF。
  BUILD_SHARED_LIBS——指明是否創建共享庫。如果**，那么DLL或共享庫將會被創建，這樣之后生成的VTK應用程序將會比較小，可以節省不少空間；如果未**，那么靜態庫將被創建.此處我們置為ON。

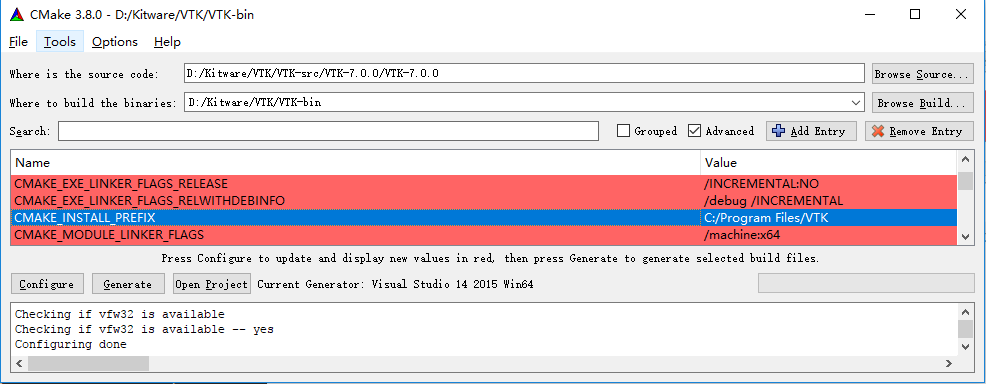

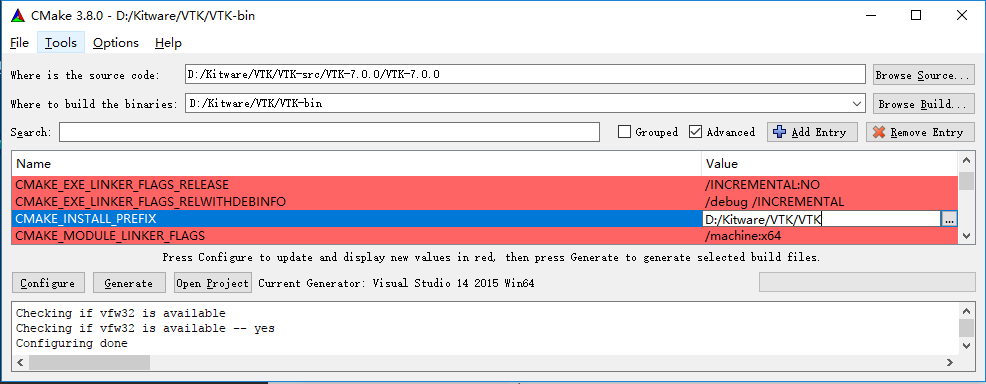

  CMAKE_INSTALL_PREFIX——VTK的生成路徑,修改如下

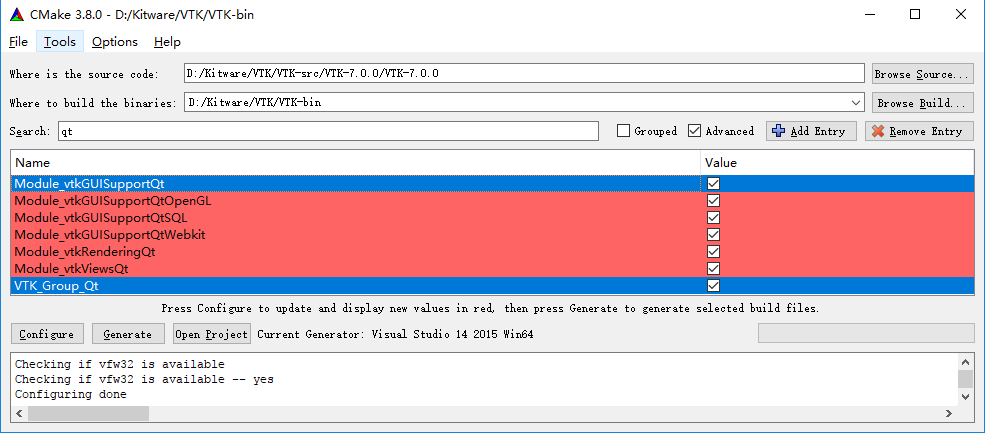

  接下來的設置是有關QT的，搜索qt并勾選全部

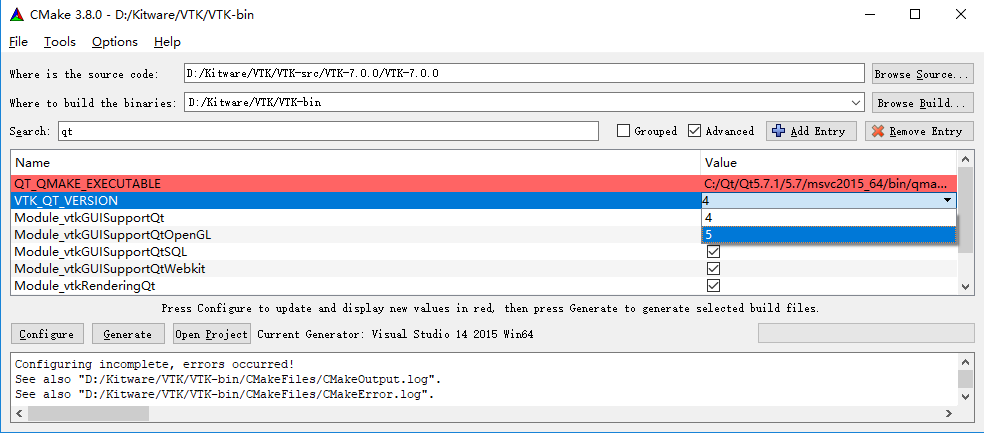

  再次Configure后VTK_QT_VERSION 改為5

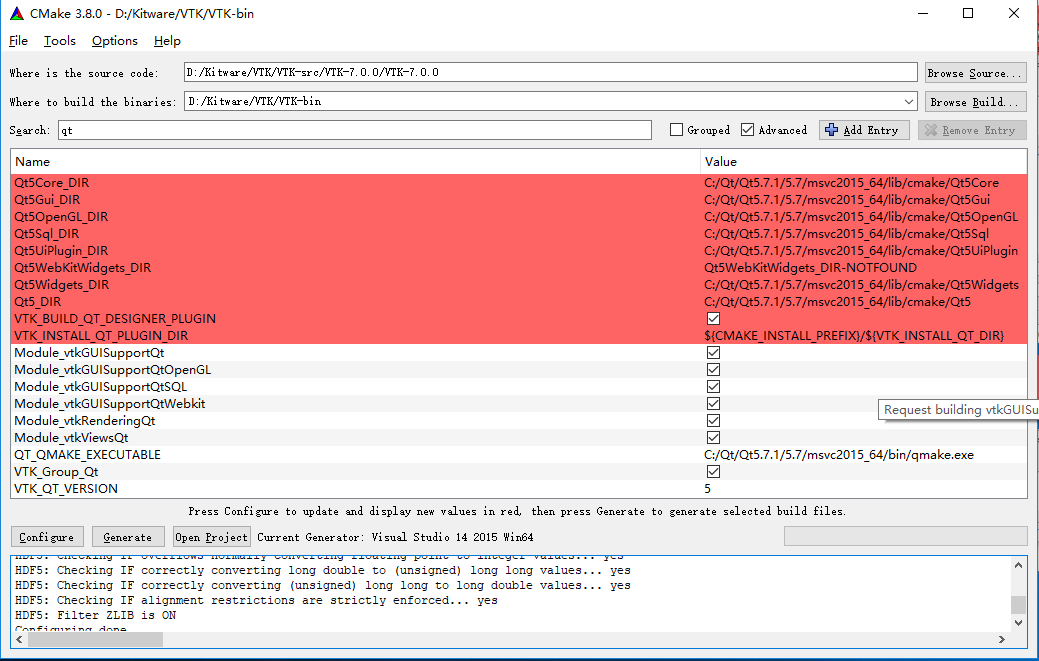

  再次Configure,后QT的位置會自動檢測出來(改變QT環境變量后需要關機一下)

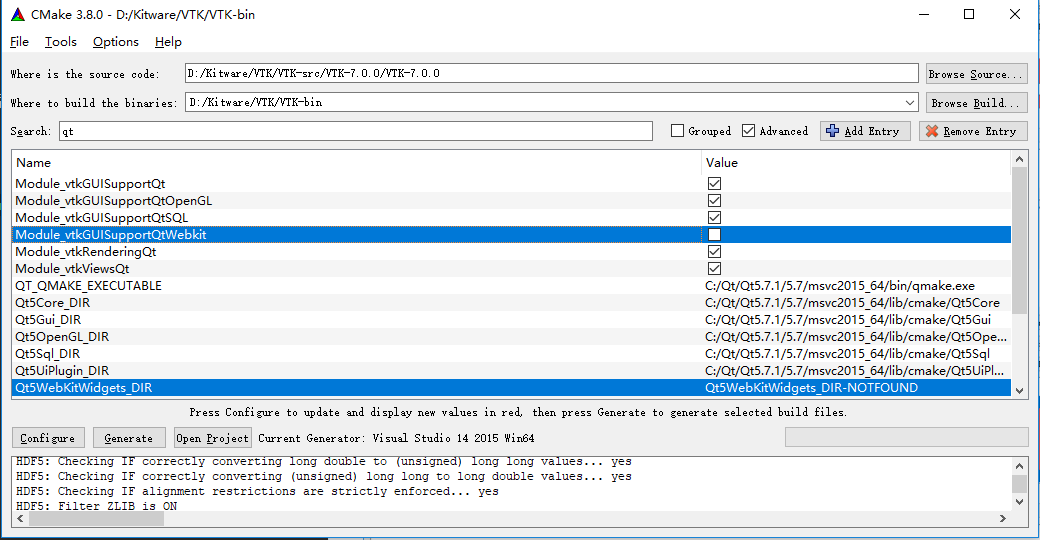

  這里Qt5WebKitWidgets_DIR找不到，我們去掉 Moudule_vtkGUISupportQtWebkit

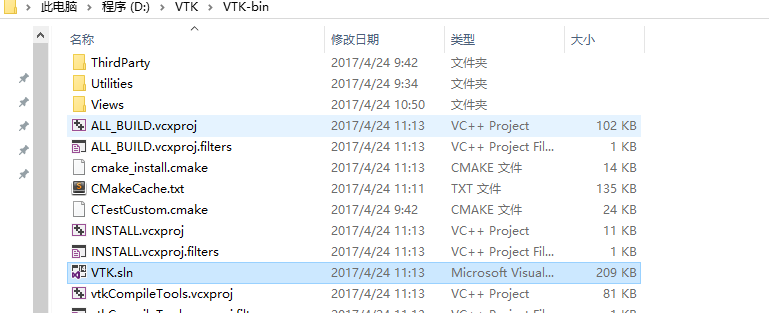

Configure后沒紅點擊Generate,然后點擊 Open Project，還可以找到VTK.sln打開

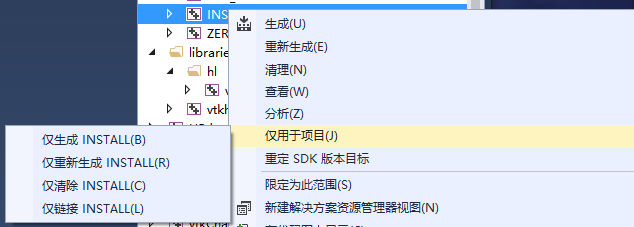

• VS2015編譯 ：ALL_BUILD-生成.沒有問題后然后INSTALL-僅用于項目-僅生成INSTALL

  換成重新編譯

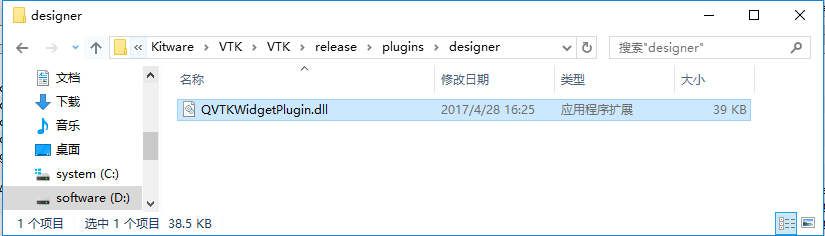

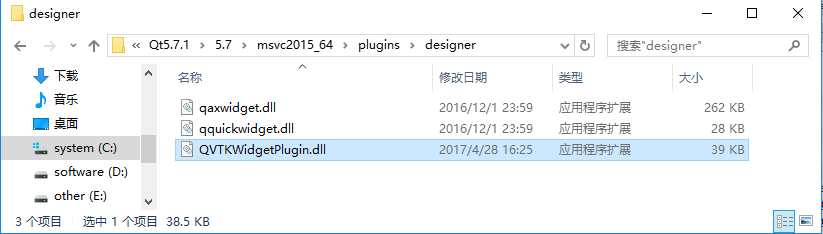

  將QVTKWidgetPlugin.dll 復制到Qt 的designer中，對應目錄如下

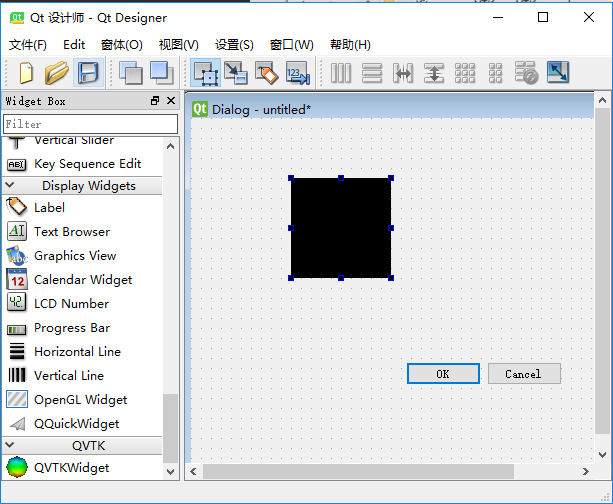

  這樣VS2015中打開 Qt designer會多出 QVTKWidget

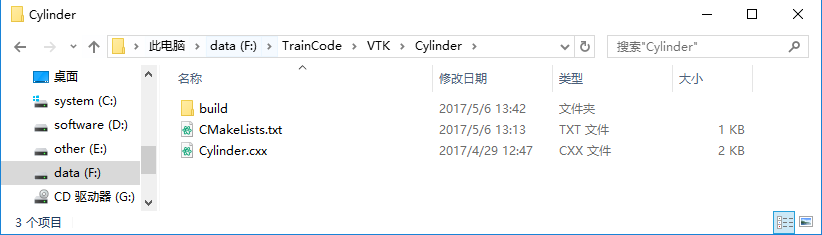

  *VTK測試:采用cmake建立工程，目錄如下

  CMakeLists.txt內容

cmake_minimum_required(VERSION 2.8)
cmake_policy(SET CMP0020 NEW)
project(Cylinder)
find_package(VTK REQUIRED)
include(${VTK_USE_FILE})
add_executable(Cylinder Cylinder.cxx)
if(VTK_LIBRARIES)
  target_link_libraries(Cylinder ${VTK_LIBRARIES})
else()
  target_link_libraries(Cylinder vtkHybrid vtkWigets)
endif(VTK_LIBRARIES)

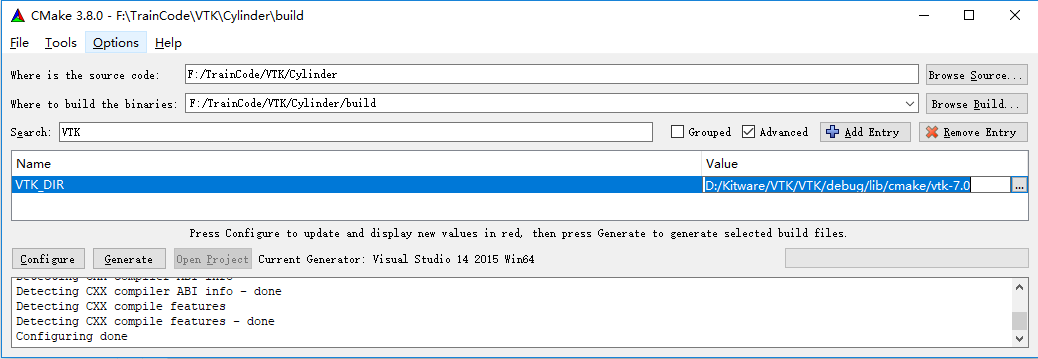

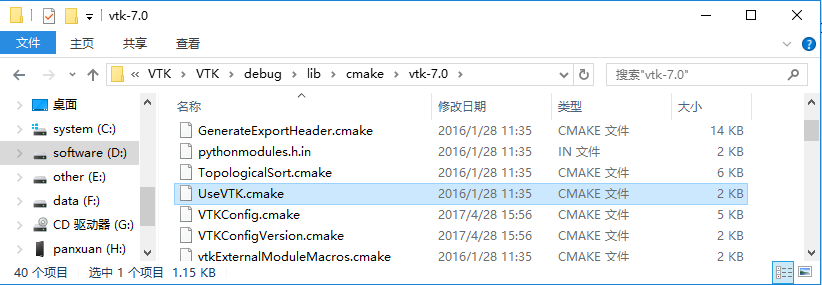

這里需要輸入VTK_DIR(如果系統環境變量配置了D:\Kitware\VTK\VTK\debug\bin,這里會自動搜索出),他是包含UseVTK.cmake的文件夾

然后Configure沒紅后Generate沒問題后 Open Project

打開VS2015在Cylinder.cxx中輸入下面代碼

#include "vtkCylinderSource.h"
#include "vtkPolyDataMapper.h"
#include "vtkActor.h"
#include "vtkRenderer.h"
#include "vtkRenderWindow.h"
#include "vtkRenderWindowInteractor.h"
#include "vtkCamera.h"
#include "vtkProperty.h"
#include "vtkSmartPointer.h"

int main() {
    vtkSmartPointer<vtkCylinderSource> cylinder = vtkSmartPointer<vtkCylinderSource>::New();
    cylinder->SetResolution(8);

    vtkSmartPointer<vtkPolyDataMapper> cylinderMapper = vtkSmartPointer<vtkPolyDataMapper>::New();
    cylinderMapper->SetInputConnection(cylinder->GetOutputPort());

    vtkSmartPointer<vtkActor> cylinderActor = vtkSmartPointer<vtkActor>::New();
    cylinderActor->SetMapper(cylinderMapper);
    cylinderActor->GetProperty()->SetColor(1.0000, 0.3882, 0.2784);
    cylinderActor->RotateX(30.0);
    cylinderActor->RotateY(-45.0);

    vtkSmartPointer<vtkRenderer> renderer = vtkSmartPointer<vtkRenderer>::New();
    renderer->AddActor(cylinderActor);
    renderer->SetBackground(0, 0, 1);//RGB
    renderer->ResetCamera();
    renderer->GetActiveCamera()->Zoom(0.3);

    vtkSmartPointer<vtkRenderWindow> renderWindow = vtkSmartPointer<vtkRenderWindow>::New();
    renderWindow->AddRenderer(renderer);
    renderWindow->SetSize(200, 200);

    vtkSmartPointer<vtkRenderWindowInteractor> renderWindowInteractor = vtkSmartPointer<vtkRenderWindowInteractor>::New();
    renderWindowInteractor->SetRenderWindow(renderWindow);
    renderWindowInteractor->Start();

    return 0;
}

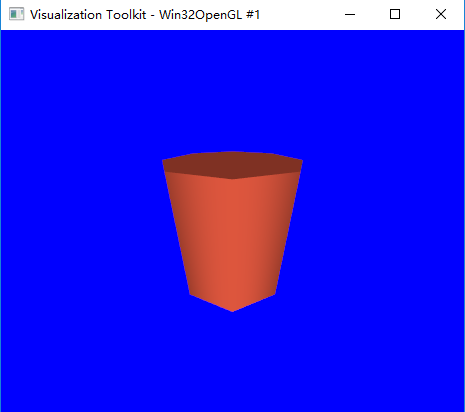

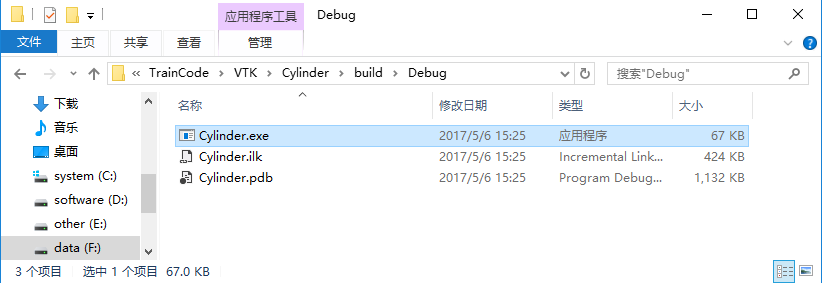

ALL-BUILD-生成打開Cylinder.exe

安裝ITK

從ITK 下載 到ITK_src,這里下的InsightToolkit-4.11.0版本,這里是 ITK examples，安裝和上面一致，注意的是要勾上Moudule_ITKVtkGlue

• ITK測試

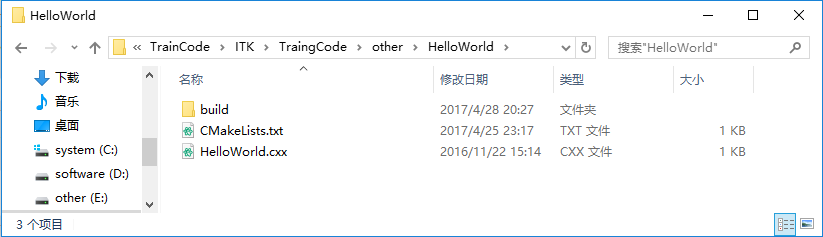

CMakeLists.cxx

cmake_minimum_required(VERSION 2.8)
cmake_policy(VERSION 2.8)
project(HelloWorld)

find_package(ITK REQUIRED)
include(${ITK_USE_FILE})
add_executable(HelloWorld HelloWorld.cxx)
target_link_libraries(HelloWorld ${ITK_LIBRARIES})

HelloWorld.cxx

#include"itkImage.h"
#include<iostream>

int main(){
    typedef itk::Image<unsigned short,3> ImageType;
    ImageType::Pointer image=ImageType::New();
    std::cout<<"hello world"<<std::endl;
    system("pause")；
    return 0;
}

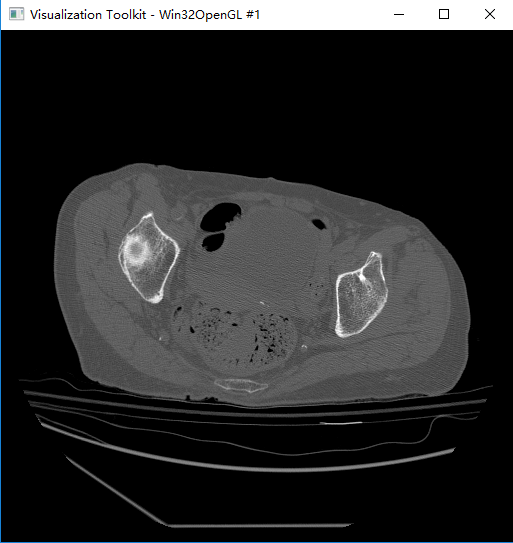

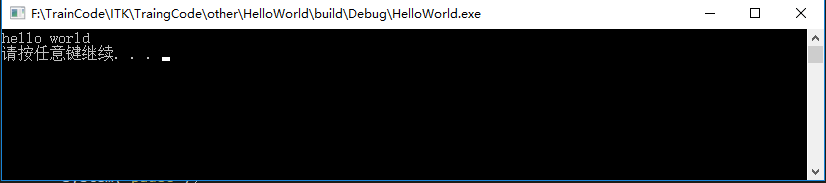

結果

VTK，ITK混合測試

我們使用ITK讀取圖片然后VTK展示

CMakeLists.txt

cmake_minimum_required(VERSION 2.8)
cmake_policy(SET CMP0020 NEW)
project(ImageToVTKImageFilter)

find_package(ITK REQUIRED)
include(${ITK_USE_FILE})
if (ITKVtkGlue_LOADED)
  find_package(VTK REQUIRED)
  include(${VTK_USE_FILE})
else()
  find_package(ItkVtkGlue REQUIRED)
  include(${ItkVtkGlue_USE_FILE})
  set(Glue ItkVtkGlue)
endif()

add_executable(ImageToVTKImageFilter  ImageToVTKImageFilter.cxx)
target_link_libraries(ImageToVTKImageFilter
  ${Glue}  ${VTK_LIBRARIES} ${ITK_LIBRARIES})

ImageToVTKImageFilter.cxx

#include "itkImage.h"
#include "itkImageFileReader.h"
#include "itkGDCMImageIO.h"
#include "itkImageToVTKImageFilter.h"
#include "vtkSmartPointer.h"
#include "vtkImageFlip.h"
#include "vtkImageViewer.h"
#include "vtkRenderWindowInteractor.h"

int main()
{
    typedef signed short PixelType;
    const unsigned int Dimension = 2;
    typedef itk::Image<PixelType, Dimension> ImageType;

    typedef itk::GDCMImageIO ImageIOType;
    ImageIOType::Pointer imageIO = ImageIOType::New();

    typedef itk::ImageFileReader<ImageType> ReaderType;
    ReaderType::Pointer reader = ReaderType::New();
    reader->SetFileName("E:/22");
    reader->SetImageIO(imageIO);
    reader->Update();

    typedef itk::ImageToVTKImageFilter<ImageType> ImageToVTKImageFilterType;
    ImageToVTKImageFilterType::Pointer itkToVtk = ImageToVTKImageFilterType::New();
    itkToVtk->SetInput(reader->GetOutput());
    itkToVtk->Update();

    vtkSmartPointer<vtkImageFlip> imageFlip = vtkSmartPointer<vtkImageFlip>::New();
    imageFlip->SetInputData(itkToVtk->GetOutput());
    imageFlip->SetFilteredAxes(1);
    imageFlip->Update();

    vtkSmartPointer<vtkRenderWindowInteractor> interactor =
        vtkSmartPointer<vtkRenderWindowInteractor>::New();

    vtkSmartPointer<vtkImageViewer> imageViewer = vtkSmartPointer<vtkImageViewer>::New();
    imageViewer->SetInputData(imageFlip->GetOutput());
    imageViewer->SetColorLevel(300);
    imageViewer->SetColorWindow(2000);
    imageViewer->SetupInteractor(interactor);
    imageViewer->Render();

    system("pause");

    return 0;
}
